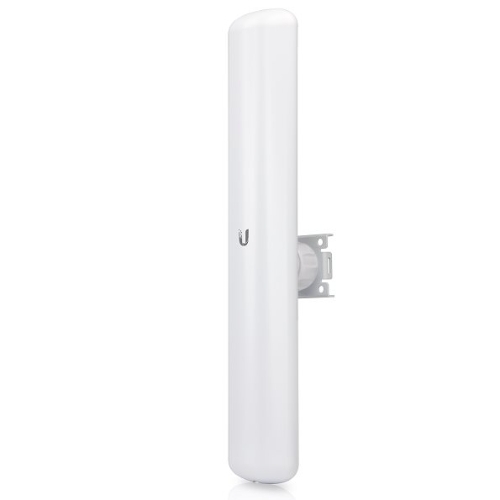

Ubiquiti Litebeam Ac 16dbi 120 Deg 5ghz 802.11ac Antenna Lap-120-au
SKU
265667
Brand
MPN
LAP-120
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$164.00
Buy Now And Earn 164 Reward Points!
　
| Dimensions(No Mount) |
| 452.3 x 78.7 x 54.4 mm(17.81 x 3.10 x 2.14") |
| Weight (No Mount) |
| 420 g (14.82 oz) |
| Mounting Kit |
| Pole Mounting Kit (Included) |
| Networking Interface |
| (1) 10/100/1000 Ethernet Port |
| Memory |
| 64 MB |
| Max. Power Consumption |
| 7W |
| Max. TX Power |
| 25 dBm |
| Antenna Gain |
| 16 dBi |
| Power Supply |
| 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method |
| Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Processor Specs |
| Atheros MIPS 74Kc, 533 MHz |
| Operating Temperature |
| -40 to 70° C (-40 to 158° F) |
| Operating Humidity |
| 5 to 95% Noncondensing |
| Wireless Approvals |
| FCC, IC, CE |
LiteBeam 5AC radio with built-in 120 Degree 16dBi Sector. 2 x 2 MIMO
The LiteBeamâ„¢ is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide 5 GHz frequency range with high-performance speeds.
The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.
The LiteBeamâ„¢ is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide 5 GHz frequency range with high-performance speeds.
The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.
