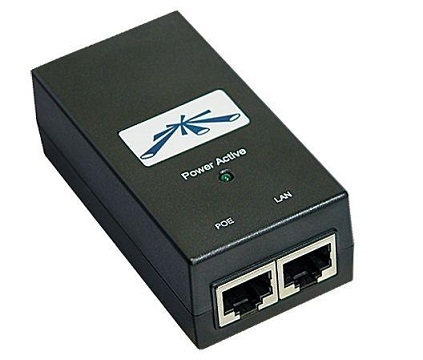

Ubiquiti Poe Injector, 24vdc, 12w Poe-24-12w

Name: Ubiquiti Poe Injector, 24vdc, 12w Poe-24-12w
Brand: Ubiquiti
SKU: 232401
Price: 21 AUD
Availability: InStock

SKU

232401

Brand

Ubiquiti

Manufacturer Link

MPN

POE-24-12W

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

$21.00

Buy Now And Earn 21 Reward Points!

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable^™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting

The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway^™ Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway^™ to bridge airMAX^® connections to Wi-Fi at customer locations.

Model Comparison

	POE-15-12W	POE-24-12W	POE-24-12W-G	POE-24-24W	POE-24-24W-G
Output Voltage	15VDC @ 0.8A	24VDC @ 0.5A	24VDC @ 0.5A	24VDC @ 1.0A	24VDC @ 1.0A
Gigabit LAN Port	No	No	Yes	No	Yes

	POE-48-24W	POE-48-24W-G	POE-50-60W
Output Voltage	48VDC @ 0.5A	48VDC @ 0.5A	50VDC @ 1.2A
Gigabit LAN Port	No	Yes	Yes

The Ubiquiti POE-24V-12W (24V, 12W) features earth grounding/ESD protection and power LED.
Australian (AU) Power cable included
Features Include:
Output Voltage 24VDC @ 0.5A 12W
Input Voltage 90-260VAC @ 47-63Hz
Input Current 0.3A @ 120VAC, 0.2A @230VAC
Efficiency 70+%
Output Ripple 1% Max
Switching Frquency 200kHz
Line Regulation +/- 0.5%
Load Regulation +/- 1%
Operating Temperature -10C to +60 deg C
Storage Temperature -20C to +85 deg C
Operating Humidity 5% to 90% non condensing
Size (l x w x h) 85 x 43 x 30 (mm)
