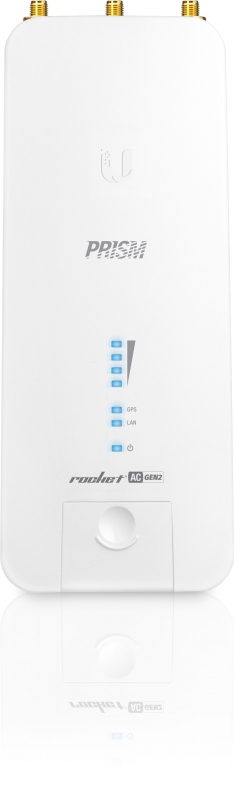

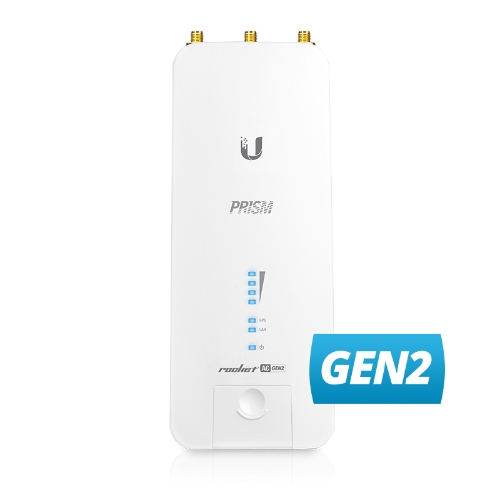

Ubiquiti Rocket Ac Prism Gen2 5GHz Radio With Speeds Up To 450+Mbps, 50+ Client Capacity, Integrated Gps Sync, RP-5AC-GEN2
SKU: RP-5AC-Gen2
Tech Specs: Click Here
Description: High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
Features:
• 5 GHz airPrism active RF filtering technology
• 450+ Mbps throughput
• 50+ client capacity
• Dedicated spectral analysis radio
• Integrated GPS sync
Full-Band 5 and 2.4 GHz Coverage
The Rocket®5ac Prism covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket5ac Prism features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
SPECIFICATION
Processor Specs: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
Operation mode: Access Point, Station
Encryption: WPA2 AES Only
Net. Interface: (1) 10/100/1000 Ethernet Port
Max. Power Consumption: 8.5W
Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight: 400 g (14.11 oz)
Power Supply: 24V, 0.5A Gigabit PoE
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: 40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
