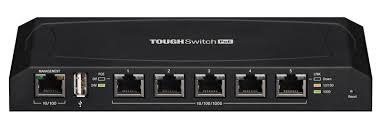

Ubiquiti Toughswitch 5port Poe Gigabit Managed Switch Ts-5-poe

SKU
235890
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$175.00
Buy Now And Earn 175 Reward Points!

Ubiquiti

Advanced Power over Ethernet Switches

The TOUGHSwitch™ delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.

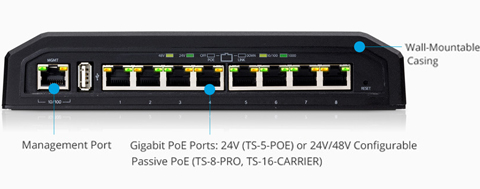

Clean Industrial Design

The TOUGHSwitch is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

Ubiquiti


Convenient PoE Support

The TOUGHSwitch supports 24V or 48V passive PoE to power multiple devices on your network.

Ubiquiti


Carrier-Class Reliability

The TOUGHSwitch™ delivers uptime performance equal to leading carrier or enterprise technology solutions.

Ubiquiti

Industrial-Strength Construction

The TOUGHSwitch™ is purpose-built with robust mechanicals for industrial application use.

Ubiquiti


A Single Power Source

Featuring software-selectable output voltage control, the TOUGHSwitch™ PoE PRO and Carrier models can power 24V or 48V devices.

Ubiquiti

Ubiquiti

Intuitive UI

Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:

  • Port monitoring
  • System connection and management services
  • Virtual Local Area Network (VLAN) configuration
  • Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
  • Jumbo frame support
  • Ping Watchdog
  • Configurable alerts

Model

Brand
Ubiquiti
Series
TOUGHSwitch PoE
Model
TS-5-POE

Ports & Interface

Primary Ports
1 x 10/100 Ethernet Port
5 x 10/100/1000 Ethernet Port

Details

PoE
PoE Out Voltage Range 22-24VDC
Max. PoE Wattage Per Data Port 11.5 W
LEDs
Management Port: Power /Link/Activity
Data Ports: PoE, Speed/Link/Activity
Power
Max. Power Consumption 60W
Power Input 24VDC, 2.5A Power Adapter (Included)

Features

Features
MIPS 24K, 400 MHz Processor

64MB System Memory

Code Storage 8 MB

24V Configurable Passive PoE

PoE Method: Passive

Wall-Mountable

Dimensions & Weight

Dimensions
7.76" x 3.44" x 1.07"
Weight
0.55lb

Environmental

Temperature
-25 to 55 degree C (-13 to 131 degree F)
Humidity
90% Maximum, Non-condensing

Group

Model
TS-5-POE
Ubiquiti TOUGHSwitch PoE Gigabit 5 Port - Australian Power Cable Included. Cost effective 5-port Gigabit switch with 24V PoE support for each port. It is ideal for powering Ubiquiti airMAX, UniFi, and airVision devices.
The Ubiquiti TOUGHSwitch is a managed switch designed to deliver Power over Ethernet (PoE) on the 10/100/1000 ports you have configured for PoE. It also features a variety of features, including port monitoring, system connection and management services, Virtual Local Area Network (VLAN) configuration, Spanning Tree Protocol (STP), Ping Watchdog, and alerts setup.
The TOUGHSwitch intuitive interface allows you to conveniently manage your TOUGHSwitch using your web browser.
