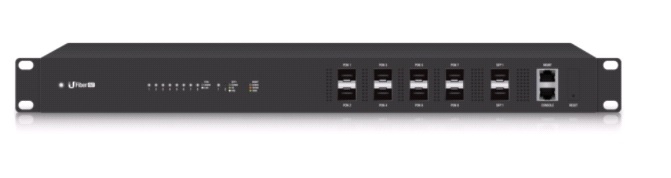

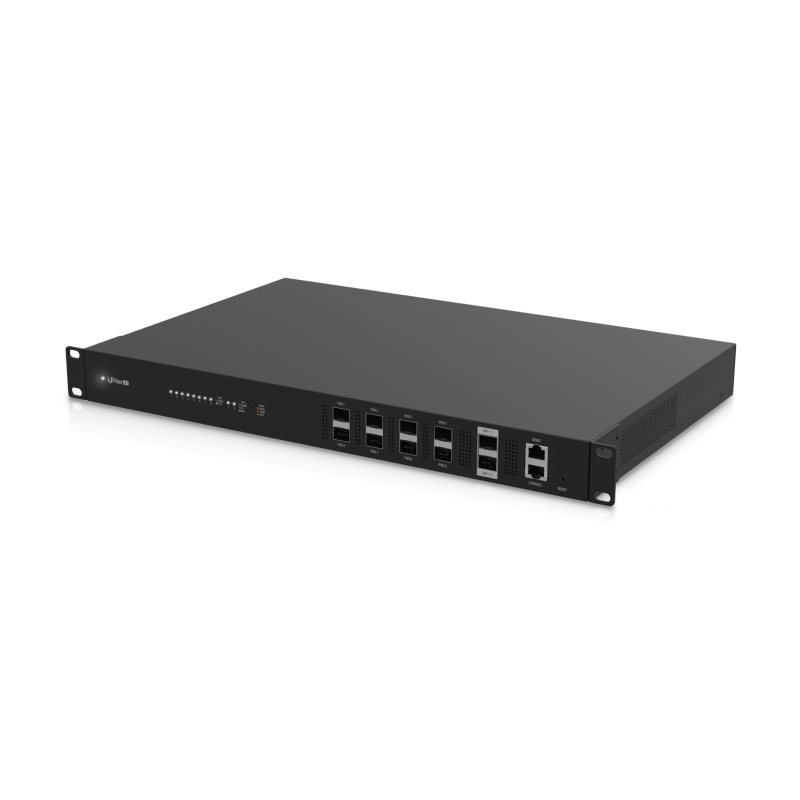

Ubiquiti U Fiber 8-Port Gpon Olt ( Optical Line Terminal ) Uf-Olt
Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.
Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
DESCRIPTION
Ubiquiti U Fiber, Nano, GPON CPE
UF-OLT
8-Port GPON Optical Line Terminal
8 Gigabit Passive Optical Network Ports
Supports up to 1024 Clients (128 per PON Port)
Up to 2.488 Gbps TX and 1.244 Gbps RX
Two 1G/10G SFP+ Ethernet Ports
Flexible Layer 2/3 Management Features
FastEthernet port for management
Console serial port for management
