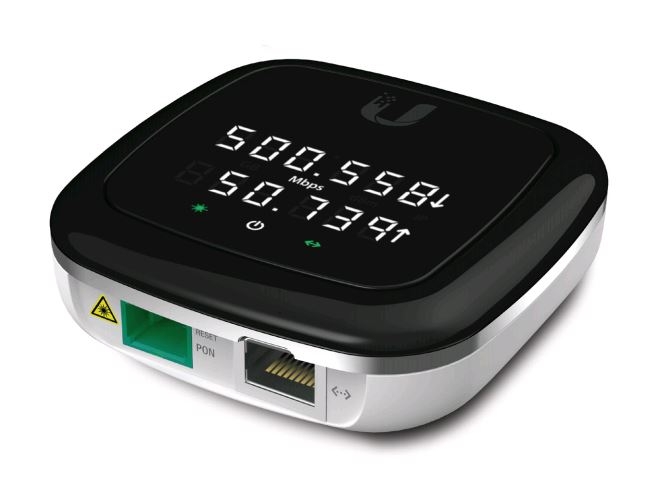

Ubiquiti U Fiber Nano Gigabit Passive Optical Network Unit Uf-nano
SKU
253562
Brand
MPN
UF-NANO
Warranty
Standard Manufacturer's Warranty
$194.00
Buy Now And Earn 194 Reward Points!
Status Display
The easy-to-read display provides status information: IP address, signal strength, and current throughput.
Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and third-party OLT devices.
Model Specifications
| PoE Input | 24V passive |
| Networking Interface | GPON (SC/APC), Ethernet (RJ-45) |
| Operation mode | Bridge only (router mode coming soon as a firmware update) |
| Supported OLTs | UFiber OLT, list of supported third-party OLTs |
GPON Optical Network Unit
The UFiber Nano G is a robust,
high‑performance GPON CPE that
features an informational LED display
and a sleek, sophisticated industrial
design.
Features
• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
• Display: Digital LED for Status
Reporting
• Max. Power Consumption: 7W
• Power Method: 24V Passive PoE
• Mounting: Wall-Mountable (Indoor)
The UFiber Nano G is a robust,
high‑performance GPON CPE that
features an informational LED display
and a sleek, sophisticated industrial
design.
Features
• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
• Display: Digital LED for Status
Reporting
• Max. Power Consumption: 7W
• Power Method: 24V Passive PoE
• Mounting: Wall-Mountable (Indoor)
