UAP-AC-LITE	UAP-AC-LR	UAP-AC-PRO	UAP-AC-EDU
Dimensions	∅160 x 31.45 mm	∅175.7 x 43.2 mm	∅196.7 x 35 mm	∅287.5 x 125.9 mm
Environment	Indoor	Indoor	Indoor/Outdoor	Indoor
2.4 GHz Speed	300 Mbps	450 Mbps	450 Mbps	450 Mbps
5 GHz Speed	867 Mbps	867 Mbps	1300 Mbps	1300 Mbps
PoE Mode	24V Passive PoE	24V Passive PoE	802.3af PoE/802.3at PoE+	802.3at PoE+ Compatible
Ports	(1) 10/100/1000 Ethernet	(1) 10/100/1000 Ethernet	(2) 10/100/1000 Ethernet	(1) 10/100/1000 Ethernet

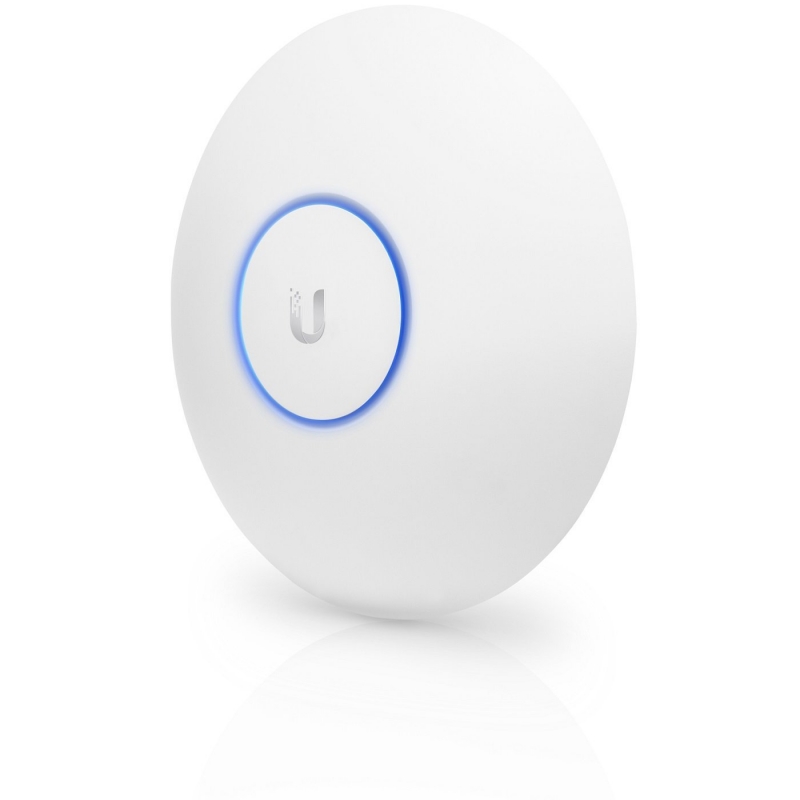

UniFi AC Long Range Access Point
802.11ac Dual Radio Long Range Access Point. The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high-performance wireless networks.
Innovative Antenna Design
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
NOTE: POE injector's not included
These 5 packs are sold for larger installs that will be run off a switch. Switches and POE's sold separately
use POE-24-12W-G
UniFi Access Point Comparison
