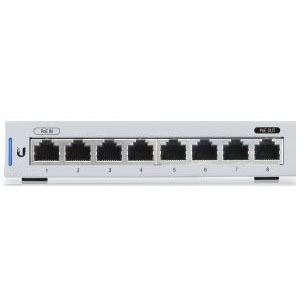

Ubiquiti - Unifi Switch, 8-port Gigabit Managed Switch With PoE Pass Through UB.US.8
No Longer Available
DETAILS
UBIQUITI UNIFI SWITCH, 8-PORT GIGABIT MANAGED SWITCH
FULLY MANAGED GIGABIT SWITCH
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switch is fully manageable, delivering robust performance and intelligent switching for your networks.
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
Switching Performance The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps with a switching capacity of 16 Gbps.
PoE The US-8 can be powered by 802.3af/at, 48V passive PoE, or the included power adapter. When the US-8 is powered by 802.3at PoE or the included power supply, port 8 supports 48V (2-pair) PoE passthrough to deliver up to 12W of power. The following table displays the PoE passthrough options for the US-8:
FEATURES
- (8) Gigabit RJ45 Ports
- (4) Auto-Sensing IEEE 802.3af PoE Ports
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
Wall Mounting You can attach the UniFi Switch to a vertical surface using the included wall-mounting hardware. You can position the switch so that the ports face in any of four directions: up, down, left, or right.
Desktop Placement You can place the UniFi Switch on a level, horizontal surface such as a table or desktop. The built-in, non-skid rubber feet help hold the switch firmly in place.
Security Slot To help deter theft, you can attach a lock to the security slot on the side of the UniFi Switch.
Dimensions | 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21") |
Weight | 432 g (15.24 oz) |
Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
PoE In (Port 1) PoE Mode 1: PoE Mode 2: |
802.3af/at (Pins 1, 2+; 3, 6-) Passive 48V (Pins 4, 5+; 7, 8-) |
PoE Out (Port 8) PoE Mode 1: PoE Mode 2: DC Input Mode: |
48V (Pins 1, 2+; 3, 6-) Passive 48V (2-Pair Pins 4, 5+; 7, 8-) 48VDC (Pins 1, 2+; 3, 6-) |
Power Method |
(1) DC 48V, Max. 1.25A (1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-) |
Power Supply | External AC/DC Adapter: 48V, 0.5A |
Max. Power Consumption | 12W (Excluding PoE Output) |
Max. PoE Wattage per Port |
PoE Mode 1: 12W @ 802.3at PoE Mode 2: 12W @ 48V DC Input Mode: 12W @ 48V |
Passive PoE Voltage Range | Depends on Power Source |
Line Rate | 8 Gbps, Non-Blocking |
LEDs System RJ45 Data Ports |
Status PoE; Link/Speed/Activity |
ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
