Ubiquiti UniFi Usw Flex-Managed,Layer 2 Gigabit Switch With Auto-sensing 802.3af PoE Support,1x PoE In, 4x PoE Out,POE Adapter/ Poe++ Does Not Include USW-Flex
SKU
290250
Brand
MPN
USW-Flex
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $219.00 Regular Price $252.00
Buy Now And Earn 219 Reward Points!

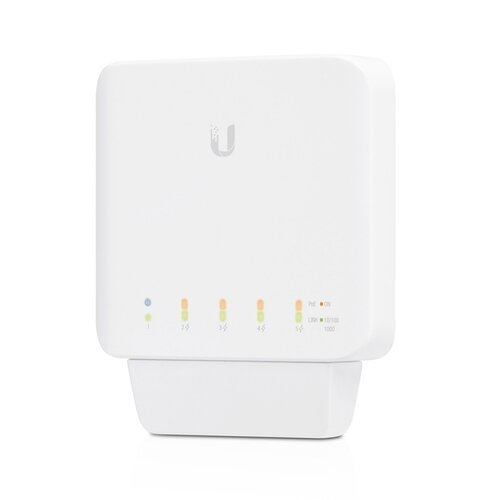

Ubiquiti USW Flex
SKU: USW-Flex
Description:Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•(4) GbE PoE+ ports
•(1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input
•Indoor/Outdoor
• Powered with a PoE++ switch or a 60W PoE adapter (sold separately).
SKU: USW-Flex
Description:Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•(4) GbE PoE+ ports
•(1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input
•Indoor/Outdoor
• Powered with a PoE++ switch or a 60W PoE adapter (sold separately).
| USW-FLEX | |
|---|---|
| Weight |
230 g (8.11 oz) |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| PoE Out (Ports 2-5) | 802.3af (Pins 1, 2+; 3, 6-) |
|
Max Power Consumption (Excluding PoE Output) |
5W |
| Max PoE Wattage Per Port | 15.4W |
|
Total PoE Power Budget Powered by 802.3af Powered by 802.3at Powered by 802.3bt Powered by PoE Adapter (Enabled in Controller) |
8W 20W 46W 46W |
|
Voltage Range 802.3af 802.3at/bt |
44 - 57V 50 - 57V |
|
LEDs System RJ45 Data Ports |
Status PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
|
Operating Temperature 46W PoE Output 25W PoE Output |
-40 to 55° C (-40 to 131° F) -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| POWER METHOD (PORT 1) | |
|
PoE Type 802.3af/at (Pins 1, 2+; 3, 6-) 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 50V/60W PoE Adapter* |
Recommended PoE Source USW-24-PoE (sold separately) USW-Pro-24-PoE (sold separately) PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately) |
| USW-FLEX-UTILITY 60W POE ADAPTER | |
| Dimensions |
118.5 x 63 x 34.7 mm (4.66 x 2.48 x 1.36") |
| Weight |
206 g (7.27 oz) |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100-240VAC |
| Input Current | 1.5A (Max.) |
| Efficiency | > 86% |
| Output Ripple | 200mVpp |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
| Operating Temperature | -20 to 60 ̊ C (-4 to 140 ̊ F) |
| Storage Temperature | -30 to 70 ̊ C (-22 to 158 ̊ F) |
| Operating Humidity | 5 to 90%, Noncondensing |
| Surge Immunity | 4kV Difference and Common Mode |
Ubiquiti UniFi USW Flex-Managed,Layer 2 Gigabit Switch with Auto-sensing 802.3af PoE Support,1x PoE In, 4x PoE Out,POE Adapter/ POE++ Does NOT Include
