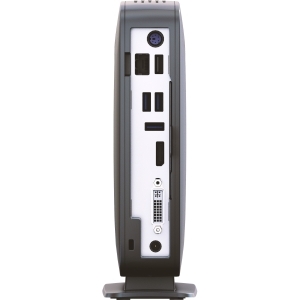

Igel UD3-LX 62-UD3-LX50-33BL
No Longer Available
Our powerful all-round series for the demanding multimedia knowledge worker. The IZ3/UD3 series is available with an optional integrated smartcard reader and a connectivity foot that offers two additional serial ports for legacy peripherals andwireless network connectivity or an anti-theft USB port.
Affordable
A low price and high energy efficiency guarantee low TCOs and a fast ROI
Dualview support
Two display ports allow users to operate two digital monitors simultaneously. The DVI-I and DisplayPort allow one digital and one analog monitor to be connected via an adapter. With the DisplayPort, the UD3 series also supports 4K resolution.
Integrated smartcard reader (optional)
Excellent for highly secure two factor authentication and fast login.
Connectivity foot (optional)
The unit can be enhanced with two additional serial ports and wireless network connectivity or an anti-theft USB port. Compatible with VESA mount.
VESA Mountable (optional)
Mountable on the back of a monitor with the optional available VESA bracket, ideal for space constrained environments
No moving parts, e.g. cooling fans
The absence of moving parts means the devices are almost noiseless and fail-safe with minimal heat generation.
| Display & Graphics | |
|---|---|
| Graphics Controller Manufacturer: | AMD |
| Graphics Controller Model: | Radeon R3E Graphics |
| Graphics Memory Accessibility: | Shared |
| Graphics Memory Capacity: | Up to 1 GB |
| General Information | |
|---|---|
| Brand Name: | IGEL |
| Manufacturer Part Number: | 62-UD3-LX50-33BL |
| Manufacturer Website Address: | http://www.igel.com |
| Manufacturer: | IGEL Technology |
| Product Model: | UD3 LX |
| Product Name: | UD3 LX Thin Client |
| Product Series: | UD3 |
| Product Type: | Thin Client |
| Interfaces/Ports | |
|---|---|
| DVI: | Yes |
| DisplayPort: | Yes |
| Ethernet Technology: | Gigabit Ethernet |
| Network (RJ-45): | Yes |
| Number of USB 2.0 Ports: | 3 |
| Number of USB 3.0 Ports: | 2 |
| Total Number of USB Ports: | 5 |
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Memory | |
|---|---|
| Flash Memory: | 2 GB |
| Memory Technology: | DDR3L SDRAM |
| Standard Memory: | 2 GB |
| Miscellaneous | |
|---|---|
| Form Factor: | Desktop |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Physical Characteristics | |
|---|---|
| Depth: | 210 mm |
| Form Factor: | Desktop |
| Height: | 207 mm |
| Width: | 69 mm |
| Processor & Chipset | |
|---|---|
| Processor Core: | Quad-core (4 Core) |
| Processor Manufacturer: | AMD |
| Processor Model: | GX-412HC |
| Processor Speed: | 1.20 GHz |
| Processor Type: | G-Series |
| Product Information | |
|---|---|
| Form Factor: | Desktop |
| Width: | 69 mm |
| Software | |
|---|---|
| Operating System: | IGEL Linux 5 |
| Storage | |
|---|---|
| Flash Memory: | 2 GB |
| Technical Information | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Memory Technology: | DDR3L SDRAM |
| Operating System: | IGEL Linux 5 |
| Processor Core: | Quad-core (4 Core) |
| Processor Manufacturer: | AMD |
| Video | |
|---|---|
| Graphics Controller Manufacturer: | AMD |
| Graphics Controller Model: | Radeon R3E Graphics |
| Graphics Memory Accessibility: | Shared |
