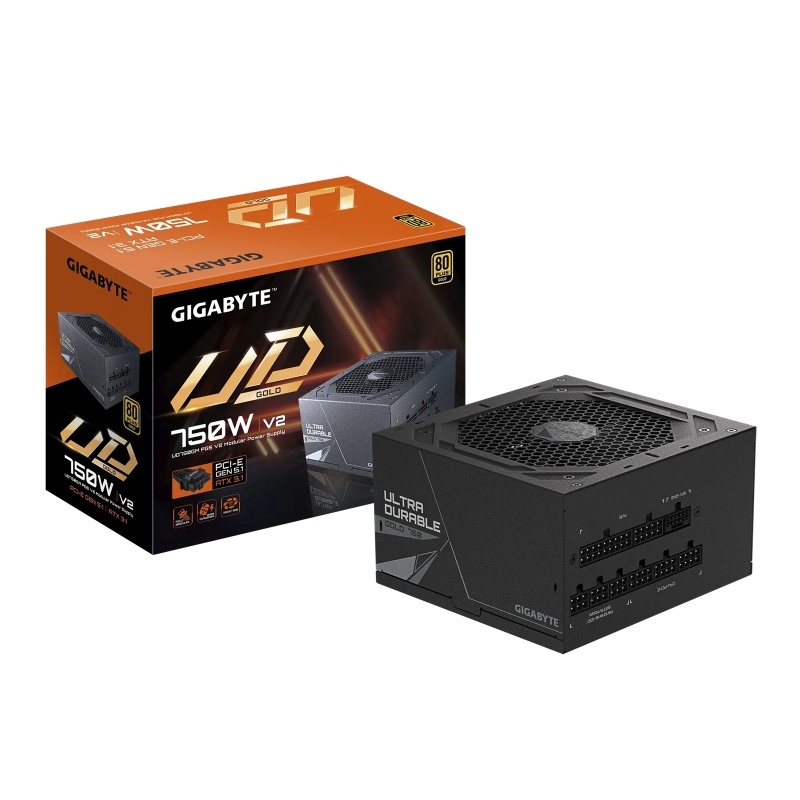

Gigabyte UD750GM PG5 V2, 750W Atx Psu Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs (New) UD750GM PG5 V2
SKU
433519
Brand
MPN
UD750GM PG5 V2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$138.00
Buy Now And Earn 138 Reward Points!
Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs (NEW)
| Model | GP-UD750GM PG5 V2 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 750W |
| Dimension | 150 x 140 x 86mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 |
| CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 | PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
| PCI-e 12+4 Pin x 1:700mm*1 | SATA x 8 : 600mm+150mm+150mm+150mm*2 |
Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs (NEW)
