Ubiquiti Unifi Ap Ac Outdoor Mesh 1167mbps, Dual-omni Antennas Uap-ac-m

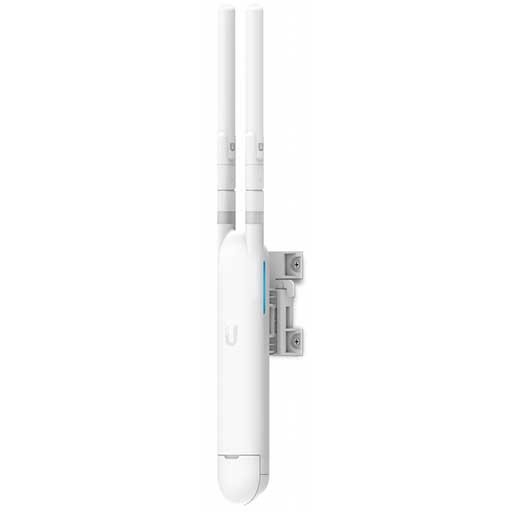

Ubiquiti UAP-AC-M
The Ubiquiti UAP-AC-M is an 802.11 mesh access point. With mesh multi-hop, you can can cover a large outdoor area with minimal infrastructure, with just a few mesh access points. These APs include adjustable dual-band omnidirectional antennas, but can be used with any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients. These models are great for temporary installations, with quick setup and takedown, ideal for music festivals and concert venues.
Product Features
� Compact Form Factor: The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
� Weather-Resistant Enclosure: AP can be used both indoors and outdoors.
� LED: Unique provisioning LED provides administrator location tracking and alerts for each device.
� Versatile Mounting: UniFi AC Mesh AP can be mounted on a wall, pole, or fast mount of a Ubiquiti high-gain antenna. (all accessories are included).
� Multiple Power Options: Compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative switch, EdgePoint EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter.
� Antenna Options: Use the included omni antennas,or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
Specifications
UAP-AC-M
Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight 152 g (5.36 oz) with Antennas
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Supported Voltage Range 44 to 57VDC
Power Save Supported
Max. Power Consumption 8.5W
Max. TX Power
2.4 GHz 20 dBm
5.0 GHz 20 dBm
Throughput Speed*
2.4 GHz 300 Mbps
5.0 GHz 866.7 Mbps
Range* 183 m (600 ft)
Antennas (2) External Dual-Band Omni Antennas
Antenna Gain
2.4 GHz 3 dBi
5.0 GHz 4 dBi
Wi-Fi Standards 802.11a/b/g/n/ac
Wireless Security
WEP, WPA-PSK,
WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature -30 to 70� C (-22 to 158� F)
Operating Humidity 5 - 95% Noncondensing
Certifications CE, FCC, IC
