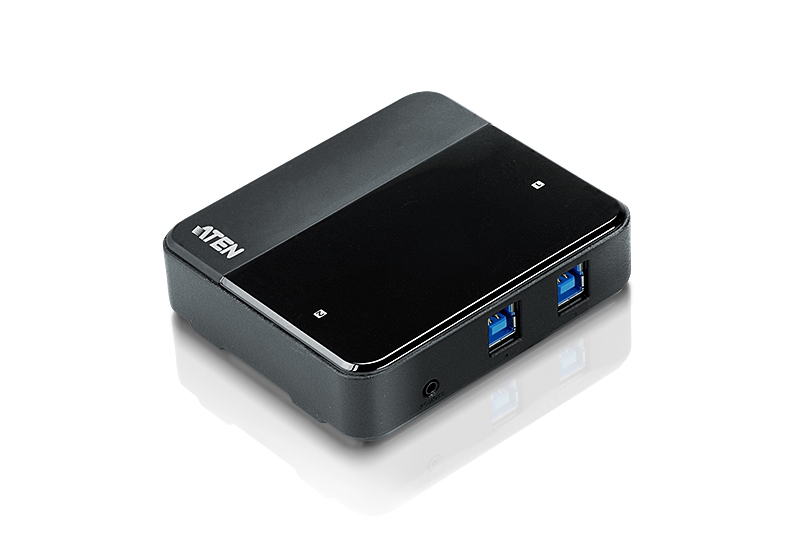

Aten 2 x 4 USB 3.2 Gen1 Peripheral Sharing Switch, 2 x USB Type B Femal (to PC), 4 x 4 x USB Type A Female (US234-AT)

SKU
369065
Brand
Aten
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare
ATEN US234 is a 2-port USB 3.0 peripheral sharing device that allows users to share four USB devices between 2 different computers. US234 is USB 3.0 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.


In addition, US234 also features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. With its compact and all-in-one design, you can create a space saving, convenient and productive work environment.


Enables 2 computers to share 4 USB 3.0 devices


Simple port selection via remote port selector for convenient switch placement


USB 3.0 compliant, supporting data transfer rates of up to 5Gbps


LEDs indicates which computer is active


Over-current protection


Multiplatform support – Windows, Linux and Mac


Bus-powered


Micro USB power jack for additional power supply


Hot pluggable, no driver or software required
Compatible Size
Product Type 2-port USB 3.0 peripheral sharing device
Warranty 2 Years
Computer Connections 2
Dimensions (L x W x H) 9.37 x 9.30 x 2.68 cm
LEDs Selected 2 (White)
Operating Humidity 0–80% RH, Non-condensing
Operating Temperature 0–40°C
Port Selection Remote port selector
Storage Temperature -20–60°C
Weight 0.12 kg
Cable Length
Remote Port Selector 1.8 m
USB Cable 2 x 1.2 m
Connectors
Computer 2 x USB Type B Femal (Blue)
Device 4 x USB Type A Female (Blue)
Power (Optional) 1 x USB micro B Female (Black)
2 x 4 USB 3.2 Gen1 Peripheral Sharing Switch, 2 x USB Type B Femal (to PC), 4 x 4 x USB Type A Female (to Peripherals)
