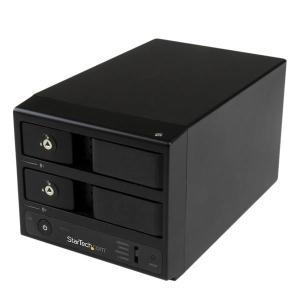

Startech Usb 3.0 / Esata Dual-bay Trayless 3.5 Sata Iii Hard Drive Enclosure W/ Uasp 2 X Sata
QUICK OVERVIEW
Features
- Supports SATA III (6 Gbps) and UASP (5 Gbps) for optimal performance
- Hardware RAID with support for RAID0 / RAID1 / BIG / JBOD
- Trayless removable HDD slots with drive locks
- Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
- Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
- Front-mounted RAID controller
- USB 3.0 and eSATA cables included
For fast performance and efficient data transfers, the enclosure supports SATA III transfer speeds -- up to 6 Gbps when connected through eSATA. The versatile RAID enclosure can also be connected through USB 3.0, with support for UASP, performing up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The external RAID enclosure features a hardware RAID controller, supporting JBOD, Spanning, RAID 0, and RAID 1 -- to achieve greater drive capacity, or secure data redundancy. The RAID controller is also front mounted for ease of access when changing your RAID mode.
For fast and easy drive installation and removal, the dual drive enclosure features a convenient trayless system that eliminates having to mount and fasten your drives, saving time and hassle.
To ensure compatibility with your computer system, the S352BU33RER supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The S352BU33RER is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
- Versatile connectivity options, through either USB or eSATA
- Maximize performance, with file transfer speeds up to 6Gbps using eSATA
- Achieve greater drive capacity or secure data redundancy with a built-in hardware RAID controller
| Hardware | |
| Fan(s) | Yes |
| Fans | 70 mm |
| Front Door Key Lock | Yes |
| Interface | USB 3.0 & eSATA |
| Number of Drives | 2 |
| Number of internal 3.5 inch bays | 2 |
| Indicators | |
| LED Indicators | HDD 1 Activity |
| HDD 2 Activity | |
| RAID LED | |
| Packaging Information | |
| Shipping (Package) Weight | 2.9 kg [6.3 lb] |
| Performance | |
| Air Flow Rate | 12.72 CFM |
| Hot Swap Capability | Yes |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total) |
| Maximum Data Transfer Rate | 6 Gbps |
| Noise Level | 26.24 dBa |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Height | 118 mm [4.6 in] |
| Product Length | 215 mm [8.5 in] |
| Product Weight | 1834 g [64.7 oz] |
| Product Width | 130 mm [5.1 in] |
| Power | |
| Input Voltage | 110V-240V AC |
| Output Current | 3 A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Hardware | |
| Fan Bearing Type | Sleeve Bearing |
| Drive Size | 3.5in |
| Drive Installation | Removable |
| Compatible Drive Types | SATA |
| Chipset ID | JMicron - JMS562 |
| Bus Type | USB 3.0 |
| Environmental | |
| Storage Temperature | -20?C to 50?C (-4?F to 122?F) |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Humidity | 20%RH~80%RH |
| Connector(s) | |
| Host Connectors | USB Type-B (9 pin) USB 3.0 Female |
| eSATA (7 pin, Data) Female | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Drive Bay Keys |
| eSATA Cable | |
| Instruction manual | |
| Universal Power Adapter (NA/UK/EU) | |
| USB 3.0 Cable | |
| USB 3.0/eSATA Dual 3.5" SATA HDD Trayless Enclosure | |
| Marketing Text | The S352BU33RER 2-Bay RAID enclosure lets you build an external RAID array with two 3.5 inch SATA hard drives, and connect to your computer through USB 3.0 or eSATA. |
| PI Date | Sep 2016 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | RAID Enclosure |
| Drive Supported | SATA |
| Drive Size | 3.5inch |
| Max. No. of Drives | 2 |
| Depth (mm) | 215.0 |
| Height (mm) | 118.0 |
| Width (mm) | 130.0 |
| Weight (Kg) | 1.8 |
| Compliance Standards | * RoHS |
| Other Features | * LED Indicators: 1 - HDD 1 Activity, 1 - HDD 2 Activity, 1 - RAID LED * Maximum Data Transfer Rate: 6 Gbps * Port Multiplier: Yes |
