Startech 2.5in Usb 3.0 Sata Hard Drive Enclosure W/ Uasp For Slim 7mm Sata Iii Ssd / Hdd - 7mm

SKU
223628
Brand
MPN
S2510BPU337
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$45.00
Buy Now And Earn 45 Reward Points!

QUICK OVERVIEW

2.5 USB 3.0 Drive Enclosure w/ UASP for SATA 6Gbps - USB 3.0 7mm SSD/HDD Enclosure S2510BPU337
Packaging Information
Shipping (Package) Weight132 g [4.7 oz]
Performance
Max Drive CapacityCurrently tested with up to 2TB 5400 RPM hard drives
RAIDNo
Type and RateSATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack
Enclosure TypePlastic
Max Drive Height7 mm [0.3 in]
Product Height9.5 mm [0.4 in]
Product Length126 mm [5 in]
Product Weight44 g [1.6 oz]
Product Width80 mm [3.1 in]
Power
Power SourceUSB-Powered
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in PackageInstall Guide
Installation pad for 5mm drives
USB 3.0 Cable
USB 3.0 to 2.5" SSD/HDD Enclosure
Indicators
LED IndicatorsPower & Activity
Hardware
Number of Drives1
Fan(s)No
Drive Size2.5in
Drive InstallationFixed
Compatible Drive TypesSATA
Chipset IDASMedia - ASM1053 - 6G
Environmental
Storage Temperature-10?C to 65?C (14?F to 149?F)
Operating Temperature0?C to 40?C (32?F to 104?F)
Humidity10%RH ~ 95%RH
Connector(s)
Host ConnectorsUSB 3.0 Micro-B (10 pin, SuperSpeed) Female
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle

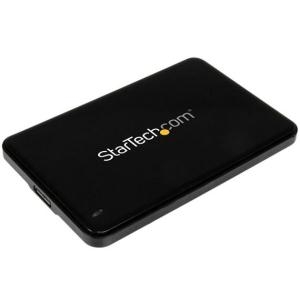

This slim, pocket-sized drive enclosure is specifically engineered for 7mm drives, giving you the option to turn your thin hard drive or solid state drive into an external storage solution connected through UASP-enabled USB 3.0. With a thin yet durable design, the enclosure fits your 7mm drives perfectly to eliminate any drive movement inside the enclosure, which could be a problem with a looser-fitting enclosure.

To help save you time transferring data to and from your 7mm SSD or HDD, this UASP-enabled enclosure supports transfer speeds up to 70% faster than traditional USB 3.0, when used with a UASP-enabled host computer.

Plus, the enclosure is USB-powered, so you don’t have to carry a power adapter with you, giving you one less thing to pack when you’re travelling.

To ensure compatibility with your computer system, the S2510BPU337 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
