Startech Usb 3.0 To Sata Or Ide Hard Drive Adapter Converter - 2.5 / 3.5 Ide And Sata To Usb 3.0 Adapter USB3SSATAIDE
QUICK OVERVIEW
| Connector(s) | |
| Drive Connectors | IDE (40 Pin, EIDE/PATA) Female |
| IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
| LP4 (4 pin, Molex Large Drive Power) Male | |
| SATA (7 pin, Data) Female | |
| SATA Power (15 pin) Female | |
| Host Connectors | USB Type-A (9 pin) USB 3.0 Male |
| Environmental | |
| Humidity | 5% ~ 85% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Innostor - IS611 |
| Compatible Drive Types | SATA & IDE |
| Drive Size | 2.5in & 3.5in |
| Interface | SATA & IDE |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | IDE Detect/Activity |
| SATA Detect/Activity | |
| USB Link | |
| Packaging Information | |
| Shipping (Package) Weight | 653 g [23.1 oz] |
| Performance | |
| ATAPI Support | Yes |
| Maximum Data Transfer Rate | 4.8 Gbps |
| MTBF | 35,000 hours |
| Type and Rate | USB 3.0 - 4.8 Gbit/s |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 18 mm [0.7 in] |
| Product Length | 70 mm [2.8 in] |
| Product Weight | 62 g [2.2 oz] |
| Product Width | 43 mm [1.7 in] |
| Power | |
| Output Current | 2A |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. |
| What's in the Box | |
| Included in Package | instruction manual |
| power adapter breakout cable | |
| SATA data cable | |
| universal power adapter (NA/JP, UK, EU, AU) | |
| USB 3.0 to SATA/IDE converter | |

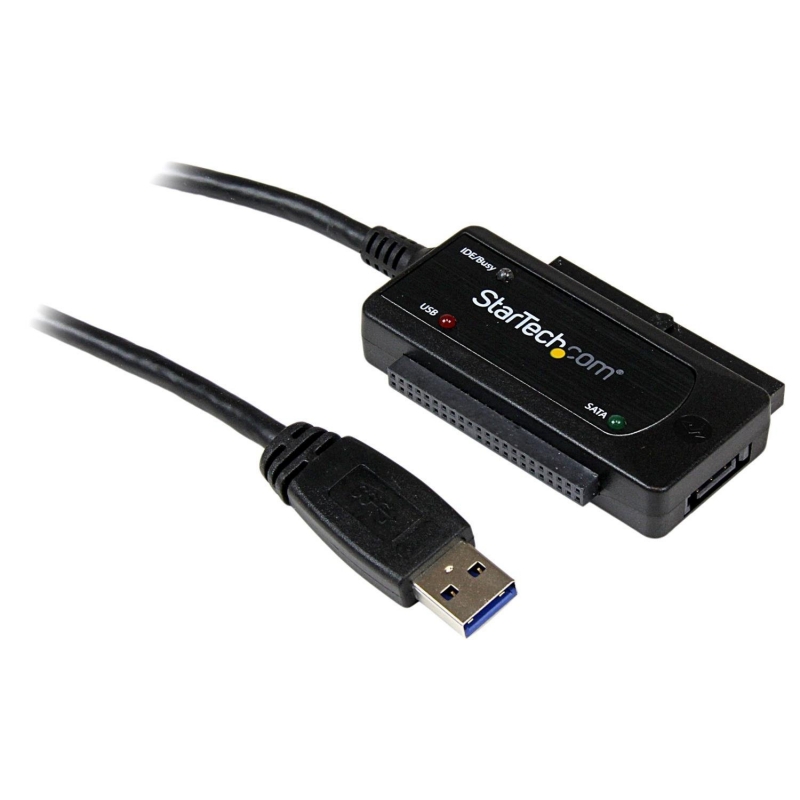

The USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through an available USB 3.0 Port (Backward compatible with USB 2.0). The adapter lets you connect a bare drive with no enclosure, saving time and hassle.
The USB 3.0 SATA/IDE Adapter lets you externally connect a bare drive with no drive enclosure or HDD dock required, and features LED indicators that allow you to easily monitor status and activity updates.
The adapter cable works with Windows®, Linux, and Mac® computers and does not require any software or driver installation - a true plug-and-play solution for adding cost-effective external storage, or overcoming incompatibility between all hard drives and USB enabled motherboards that may not be SATA or IDE-equipped.
Backed by our 2-year warranty, the USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable comes complete with universal adapter and power cords, providing the additional power required to connect 3.5-inch and larger capacity 2.5-inch hard drives.
