Startech 3.5in Aluminum Usb 3.0 External Sata Iii Ssd/hdd Enclosure With Uasp - Portable Usb 3.0 S3510BMU33

SKU
225911
Brand
MPN
S3510BMU33
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$100.00
Buy Now And Earn 100 Reward Points!

QUICK OVERVIEW

3.5 SATA Hard Drive Enclosure - 3.5 HDD Enclosure - USB 3.0 Hard Drive Enclosure - Black S3510BMU33

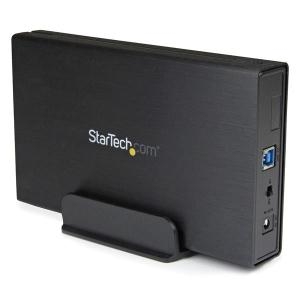

The S3510BMU33 Black USB 3.0 Hard Drive Enclosure with UASP lets you connect a 3.5in SATA III hard drive (HDD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well.

Enhanced with UASP (USB Attached SCSI Protocol), this 3.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

With support for SATA I/II/III, and large capacity drives (tested up to 4TB) this HDD enclosure is compatible with virtually any 3.5in SATA hard drive, and can greatly increase the storage/backup capabilities of your computer.

The USB 3.0/SATA III enclosure features high quality aluminum construction, ensuring durability.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com enclosure, and a SATA III solid state drive.



The StarTech.com Advantage
  • 70% Faster than traditional USB 3.0, with UASP Transfer Protocol
  • Maximum durability, with aluminum housing
Indicators
LED IndicatorsPower & Activity
Packaging Information
Shipping (Package) Weight0.8 kg [1.7 lb]
Performance
Max Drive CapacityCurrently tested with up to 4TB 7200 RPM hard drives
RAIDNo
Type and RateSATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack
Enclosure TypeAluminum and Plastic
Product Height115.4 mm [4.5 in]
Product Length191.5 mm [7.5 in]
Product Weight317 g [11.2 oz]
Product Width31.4 mm [1.2 in]
Power
Center Tip PolarityPositive
Input Current0.6 A
Input Voltage100 ~ 240 AC
Output Current2 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)24
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent; No software or drivers required
Special Notes / Requirements
System and Cable RequirementsAvailable USB port
What's in the Box
Included in Package3.5? USB 3.0 SATA III HDD Enclosure
HDD Stand
Product Manual
Screw Kit
Universal Power Adapter (NA / UK / EU)
USB 3.0 Cable
Hardware
Number of Drives1
InterfaceUSB 3.0
Fan(s)No
Drive Size3.5in
Drive InstallationFixed
Compatible Drive TypesSATA
Chipset IDASMedia - ASM1053 - 6G
Environmental
Storage Temperature-10?C to 65?C (14?F to 149?F)
Operating Temperature0?C to 40?C (32?F to 104?F)
HumidityOperation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Connector(s)
Host ConnectorsUSB Type-B (9 pin) USB 3.0 Female
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Female
