Startech Usb-c To Vga Video Adapter With Usb Power Delivery - Usb C To Vga Adapter - White - Use
QUICK OVERVIEW
Overview

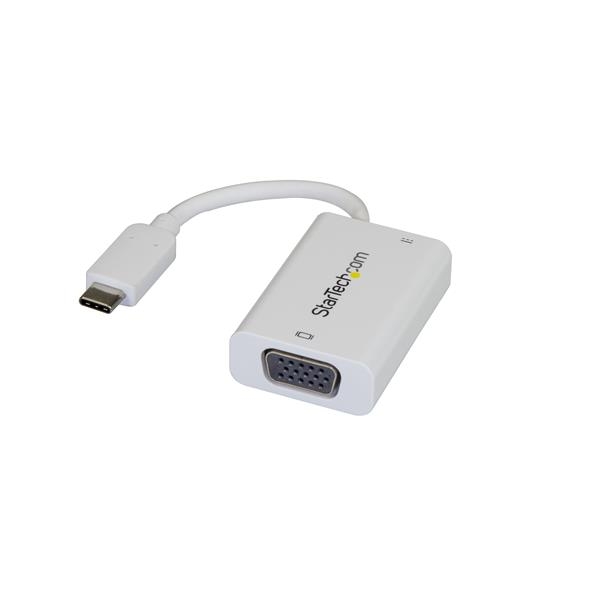

This USB-C to VGA adapter connects a VGA display to your laptop or MacBook with USB Type-C. The USB-C adapter features USB Power Delivery, enabling you to power your laptop while outputting video to a using the same USB-C port. The adapter is also available in black (CDP2VGAUCP) so you can choose an adapter that matches the style of your laptop.
Power and Video in One Port with USB Power Delivery
Smaller and lighter laptops are great for portability but you’re left with fewer connectivity ports. This USB-C VGA adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port, so you can charge your laptop using its USB-C power adapter, even while you output video. Many laptops like Dell XPS and MacBook Pro support charging through your USB-C port with USB Power Delivery, check your specifications to confirm compatibility.
Enjoy HD Picture Quality with Video Resolutions up to 2048 x 1260
To ensure the quality of your video signal is maintained the USB-C dongle supports VGA resolutions up to 2048 x 1260 60Hz, including popular high-definition resolutions like 1080p and 720p.
Stylish Connectivity for Your MacBook or Any Laptop
This USB Type-C adapter has an all-white housing and built-in USB-C cable designed to match your MacBook. The adapter is compatible with any device that supports USB-C DP Alt Mode.
The CDP2VGAUCPW is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Connector(s) | |
Connector A | USB-C (24 pin) DisplayPort Alt Mode Male Input |
Connector B | USB-C (24 pin) USB Power Delivery only Female |
VGA (15 pin, High Density D-Sub) Female Output | |
Environmental | |
Humidity | 0~90% RH |
Operating Temperature | 0?C to 40?C (32?F to 104?F) |
Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
Hardware | |
Chipset ID | ITE - IT6516 VIA/VLI - VL100 |
Converter Type | Adapters |
Output Signal | VGA |
Ports | 2 |
Packaging Information | |
Shipping (Package) Weight | 0.1 kg [0.2 lb] |
Performance | |
Maximum Analog Resolutions | 1920 x 1200 @ 60Hz |
Supported Resolutions | 1920 x 1200 @ 60Hz 1920 x 1080 1280 x 720 1680 x 1050 1600 x 900 1440 x 900 1360 x 768 1280 x 800 1280 x 768 |
Wide Screen Supported | Yes |
Physical Characteristics | |
Accent Color | Black |
Color | White |
Product Height | 15 mm [0.6 in] |
Product Length | 150 mm [5.9 in] |
Product Weight | 24 g [0.8 oz] |
Product Width | 33 mm [1.3 in] |
Power | |
Power Delivery | 60W |
Power Source | USB-Powered |
What's in the Box | |
Included in Package | USB-C to VGA adapter |
