Aten Usb Converter Usb To Rs232C With 1M Cable - Uc232A1-At
The UC232A series USB-to-RS232 serial port converter is the ideal accessory for laptop and desktop computers that do not have a COM or DB9 serial port. Supporting both PC and Mac systems with baud rates up to 921.6 Kbps for rapid performance, it offers a convenient connectivity solution for industrial automation systems, scientific instruments, point of sale systems, and other specialized industrial and consumer applications.
- Support the RS232 Serial interface.
- Full compliance with the USB Specification.
- Up to 921.6 Kbps data transfer rate.

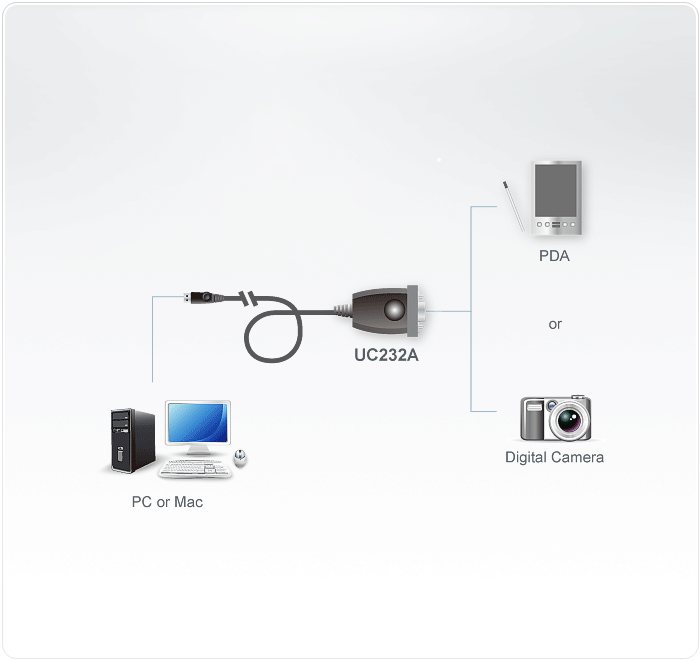

- Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter.
- OS Compatibility: Windows, Mac, Linux.
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Serial | 1 x DB-9 Male (Silver) |
| Data Rate | Up to 921.6 KBps |
| Cable Length | 1m |
| LEDs | Power (Orange) |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0–40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.07 kg ( 0.16 lb ) |
| Dimensions (L x W x H) | 6.59 x 3.40 x 1.60 cm (2.59 x 1.34 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
The UC232A series USB-to-RS232 serial port converter is the ideal accessory for laptop and desktop computers that do not have a COM or DB9 serial port. Supporting both PC and Mac systems with baud rates up to 230 Kbps for rapid performance, it offers a convenient connectivity solution for industrial automation systems, scientific instruments, point of sale systems, and other specialized industrial and consumer applications.
The UC232A series now supports mobile devices as a computing host (Android 3.2 and above). The UC232A series SDK is available for download in the Support and Downloads section. To download the mobile demo app from the Google Play store, please click on or scan this QRCode.
Support the RS232 Serial interface.
Full compliance with the USB Specification.
Up to 230Kbps data transfer rate.
Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter.
OS Compatibility: Windows, Mac, Linux.
Package Contents
1x USB-to-Serial Converter
1x Driver Disk
1x User Instructions
