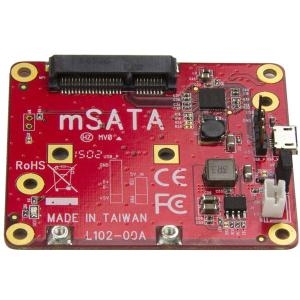

Startech Usb To Msata Converter For Raspberry Pi And Development Boards - Usb To Mini Sata Adapter PIB2MS1
QUICK OVERVIEW
Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an mSATA drive. Perfect for custom projects and applications, this USB to mSATA converter supports all models of Raspberry Pi as well as other development boards.
Add storage capacity to your development board
This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your board’s USB-A port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It allows you to utilize your mSATA drives with your development board, and take advantage of the small form factor of mini-SATA, ideal for applications with space limitations.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2MS1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Raspberry Pi is a trademark of the Raspberry Pi Foundation
| Performance | |
| Maximum Data Transfer Rate | 480 Mbps |
| MTBF | 5,077,966 hrs |
| Type and Rate | SATA III (6 Gbps) |
| USB 2.0 - 480 Mbit/s | |
| Physical Characteristics | |
| Color | Red |
| Product Height | 11 mm [0.4 in] |
| Product Length | 65 mm [2.6 in] |
| Product Weight | 18.2 g [0.6 oz] |
| Product Width | 55 mm [2.2 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | mSATA mounting screws |
| nuts | |
| quick-start guide | |
| screws | |
| standoffs | |
| USB to mSATA converter | |
| USB-A to Micro-B cable | |
| Packaging Information | |
| Shipping (Package) Weight | 100 g [3.5 oz] |
| Hardware | |
| Number of Drives | 1 |
| Interface | USB 2.0 |
| Drive Size | mSATA (Full Size) |
| Compatible Drive Types | mSATA (Mini SATA) |
| Chipset ID | Renesas/NEC - ?PD720231A |
| Bus Type | USB 2.0 |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 15% ~ 90% RH |
| Connector(s) | |
| Host Connectors | USB Micro-B (5 pin) |
| Drive Connectors | mSATA (52 pin, Mini SATA) Slot |
| Marketing Text | This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your board's USB-A port. |
| PI Date | Jun 2017 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | USB to mSATA Converter |
| Product Model | AE415 |
| Interface | 1 x USB 2.0 |
| Depth (mm) | 65.0 |
| Height (mm) | 11.0 |
| Width (mm) | 55.0 |
| Weight (Kg) | 18.2 Grams |
| Cable Color | Red |
| Operating Temperature | 5 - 50°C |
| Package Includes | * 1 - USB to mSATA converter * 1 - USB-A to Micro-B cable * 4 - standoffs * 4 - nuts * 4 - screws * 2 - mSATA mounting screws * 1 - quick-start guide |
| Compliance Standards | * RoHS |
| Other Features | * MTBF: 5,077,966 hrs * Maximum Data Transfer Rate: 480 Mbps |
| Warranty Information | 2 Years |
