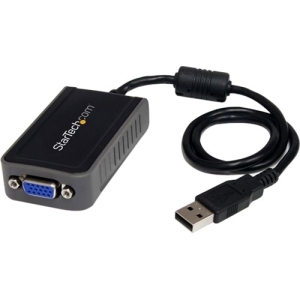

Startech Usb To Vga Multi Monitor External Video Card Adapter - 1440x900 - Usb To Vga External Graphics

SKU
225881
Brand
Startech
Manufacturer Link
MPN
USB2VGAE2
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$103.00
Buy Now And Earn 103 Reward Points!

QUICK OVERVIEW

Card USB2VGAE2
Add to Compare

Connect a VGA monitor for an extended desktop multi-monitor USB solution

The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.

The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.

The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

　

From the Manufacturer

　

USB-to-VGA Multi Monitor External Video Adapter

Connect a VGA monitor for an extended desktop multi-monitor USB solution

Add an extra VGA port to your desktop or laptop computer in minutes. Our external USB-to-VGA solution allows you to enjoy multiple monitor efficiency without opening your computer case. The USB2VGAE2 USB external video card is ideal for office applications and simple web browsing. See below for our full selection of our USB Display Adapters to meet the needs of different applications.

Top Buying Reasons:

  1. External USB-to-VGA video card solution
  2. Connect an extra VGA monitor in minutes
  3. Add workspace for office applications or simple browsing
  4. Increase productivity with multiple monitors
VGA Port
　
USB2VGAE2 Alternate View




　
1. External USB-to-VGA video card solution
  • Add extra VGA monitors to your desktop computer without having to open the computer case
  • The only way to quickly expand your desktop over several monitors for laptop users
  • Cost effective solution to expand your computers display capabilities
　

　
2. Connect an extra VGA monitor in minutes
  • Install drivers: Insert the Driver CD or download the latest drivers from Startech.com, follow the on-screen instructions
  • Restart your computer: While your computer re-starts connect the VGA cable from your secondary monitor to the USB-to-VGA adapter
  • Connect adapter and enjoy your new desktop real estate: Once windows has fully re-loaded plug the USB video adapter and follow the on-screen instructions and enjoy your new desktop real estate
Intallation
　
USB-to-VGA Video Adapter: How it works diagram


　
3. Add workspace for office applications or simple browsing
  • Ideal for word processing, spreadsheets and simple web browsing
  • Leave your primary display for the performance demanding applications i.e. video playback or games
  • Up to 5 displays can be added (5 USB2VGAE2 adapters needed)
4. Increase productivity with multiple monitors
  • Multiple monitors have consistently proven to increase productivity and efficiency
  • Run multiple applications on different screens
  • Can be used on VGA monitors and/or VGA projectors
Physical Characteristics
Product Weight80 g [2.8 oz]
Product Width42 mm [1.7 in]
Software
OS CompatibilityWindows? 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes / Requirements
System and Cable RequirementsOne available USB 2.0 port
What's in the Box
Included in PackageDriver and Software CD
Instruction Manual
USB to VGA Adapter
Physical Characteristics
Product Length75 mm [3 in]
Product Height50 mm [2 in]
ColorGray
Cable Length457.2 mm [18 in]
Performance
Supported ResolutionsStandard:
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600

Widescreen:
1680x1050, 1440x900, 1280x800, 1280x768, 1152x864, 800x600
General SpecificationsThis USB video adapter uses a Trigger family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Packaging Information
Shipping (Package) Weight233.6 g [8.2 oz]
Hardware
USB Pass-ThroughNo
Memory16MB SDRAM
Chipset IDMCT - Trigger 1+
Connector(s)
Connector BVGA (15 pin, High Density D-Sub) Female Output
Connector AUSB Type-A (4 pin) USB 2.0 Male Input

The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.

The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.

The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.

Application Diagram

USB2VGAE2 Application Diagram

Backed by a StarTech.com 2-year warranty and free lifetime technical support.
