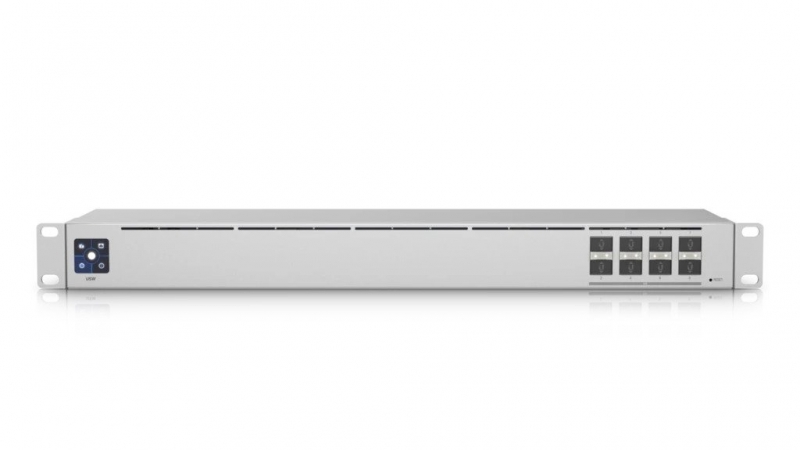

Ubiquiti UniFi 8-port 10G SFP+ Aggregation Switch, Layer 2 Switch, Fanless, 1U Rackmount (USW-Aggregation)
UniFi Aggregation Switch
USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.
Mechanical
Dimensions
442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72″)
Weight
Without Mount: 2.65 kg (5.84 lb)
With Mount: 2.74 kg (6.04 lb)
Enclosure Material
SGCCSteel
Hardware
Total Non-Blocking Throughput
80 Gbps
Switching Capacity
160 Gbps
Forwarding Rate
119.04 Mpps
Max. Power Consumption
30W
Power Method
Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply
AC/DC, Internal, 36W
Management Interface
EthernetIn-Band
Modes
SMB Layer 2 GigabitEthernetSwitch
ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV
Operating Temperature
-5 to 40° C(23 to 104° F)
Operating Humidity
10 – 90%Noncondensing
Certications
CE, FCC, IC
