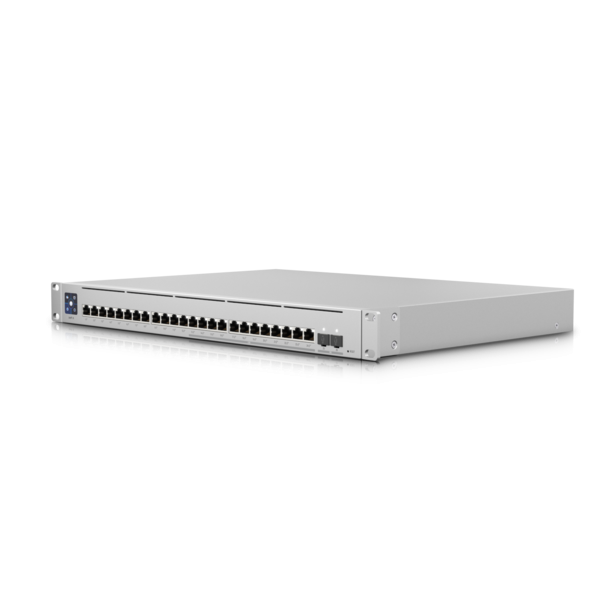

Ubiquiti UniFi Switch Enterprise 24-port PoE+ 12x2.5GbE 12x1GbE Ports, For Wi-Fi 6 Ap, 2x 10g Sfp+ Ports, Managed Layer 3 Switch (400W) USW-Enterprise-24-PoE
SKU: USW-Enterprise-24-PoE
Description: A 24-port, Layer 3 switch with 2.5 GbE PoE+ output.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•(12) 2.5 GbE, (12) GbE; all PoE+ ports
•(2) 10G SFP+ ports
•400W total PoE availability
•DC power backup-ready
•Layer 3 switching
Mechanical
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 62 Gbps
Switching Capacity 124 Gbps
Forwarding Rate 92.25 Mpps
Max. Power Consumption 550W
Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 550W
Management Interface Ethernet In-Band
Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10G SFP+
PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 95% Noncondensing
Certifications CE, FCC, IC
