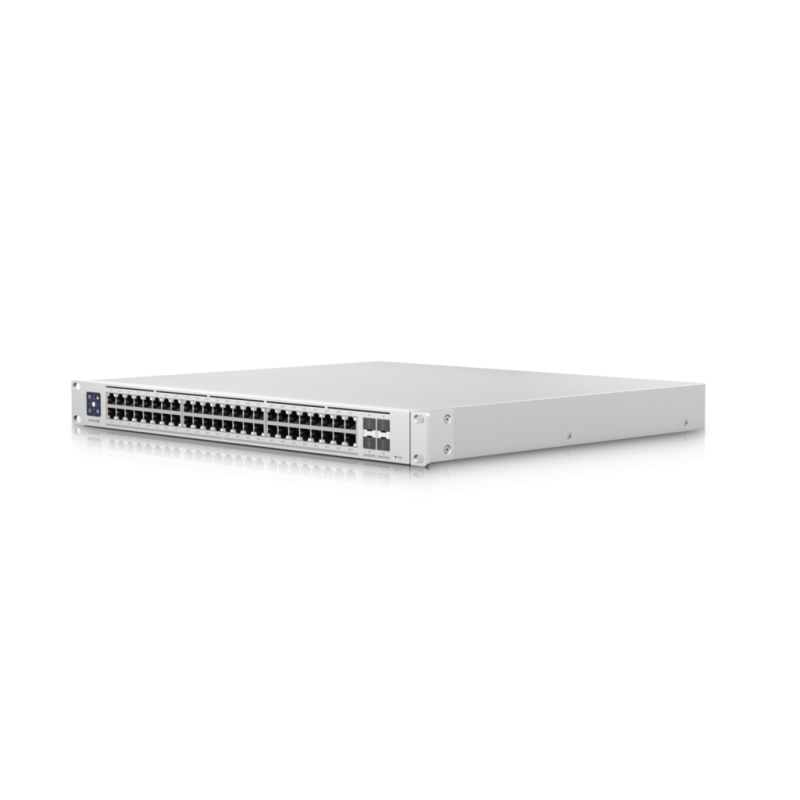

Ubiquiti Switch Enterprise 48-port PoE+ 48x2.5GbE Ports, For Wi-Fi 6 Ap, 4x 10g Sfp+ Ports For Uplinks, Managed Layer 3 Switch (720W), USW-Enterprise-48-PoE
SKU: USW-Enterprise-48-PoE
Description: A 48-port, Layer 3 switch with 2.5 GbE PoThe Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•(48) 2.5 GbE PoE+ ports
•(4) 10G SFP+ ports
•720W total PoE availability
•DC power backup-ready
•Layer 3 switching
Mechanical
Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
Weight Without Mount: 6.2 kg (13.67 lb)
With Mount: 6.3 kg (13.89 lb)
Enclosure Material SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 160 Gbps
Switching Capacity 320 Gbps
Forwarding Rate 238.095 Mpps
Max Power Consumption (Excluding PoE Output) 150W
Power Method (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply AC/DC, Internal, 100-240V, 10A Max.
Management Interface Ethernet In-Band
Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ Interfaces (4) 1/10G SFP+ ports
PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE 720W
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
