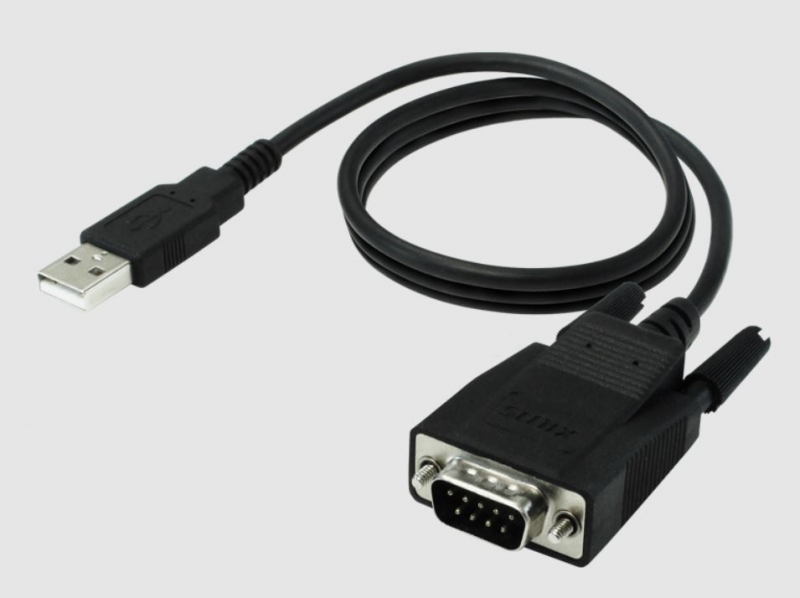

Sunix UTS1009GC 1 port USB-to-RS-232 Adapter Prolific PL2303GC; Supports USB 1.1 full speed 12Mbps (UTS1009GC)

SKU
371365
Brand
Sunix
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$25.00
Buy Now And Earn 25 Reward Points!
Add to Compare

SUNIX ComHub UTS series transform your Universal Serial Bus (USB) port into asynchronous RS-232 serial ports for communication with serial devices. The UTS1009D adapter is compatible with both USB 3.0, 2.0 and 1.1 specifications with serial ports communication speed up to 120Kbps. SUNIX ComHub provides a quick, simple and cost-effective solution to bring the advantages of serial communicating for kinds of commercial and industrial automation applications.

  • Expands one independent RS-232 serial ports through USB interface.
  • Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
  • No IRQ, DMA, I/O address resource required.
  • Supports USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1 compatible.
  • Each serial port provides transmission rate up to 115.2Kbps.
  • Built-in ± 15KV ESD protection for all serial signals.
  • Compact Size and low power consumption.
  • Supports both USB bus power mode without additional external power.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Mac and Linux.
Interface RS-232
Controller Prolific PL2303GC
BUS Universal Serial Bus (USB)
No. of Port 1-port
IRQ & IO Assigned by System
FIFO Receive 768 byte Buffer Hardware
Transmit 256 byte Buffer Hardware
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Baud rate 50~115.2Kbps
Data bit 5, 6, 7, 8
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Protection ±15KV ESD protection for each signal
Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
PCB Connector DB9 Male with Screw bolt
Sunix UTS1009GC 1 port USB-to-RS-232 Adapter Prolific PL2303GC; Supports USB 1.1 full speed 12Mbps
