Fujitsu TX1320 M4 Bundle - Xeon E-2234 [4C/8T] (1/1) / 16GB DDR4-2666 U ECC (1/4) / SSD/SAS/SATA 2.5" (0/4) / 450W PSU (1/2) / 1Y NBD (VFY:T1324SC070AU)
SKU
367073
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!

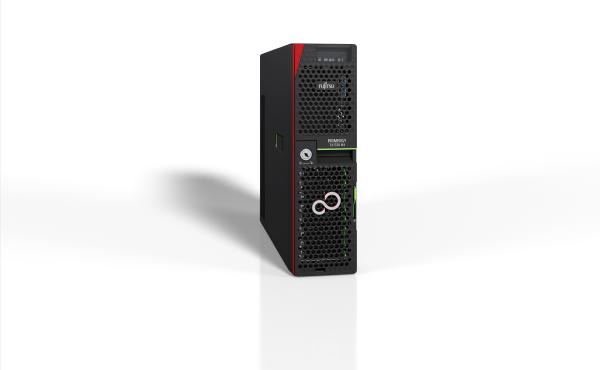

The FUJITSU Server PRIMERGY TX1320 M4 is an advanced, ultra-compact, silent
mono-socket server, ideal for classic Small and Medium Enterprise needs, plus
space constrained environments across Industry Verticals. VFY bundle contents
listed below (supplier part codes have been used):
- (1) S26361-K1638-V151: PY TX1320M4/SFF/Red. PSU
- (1) S26361-F4029-E334: Intel Xeon E-2234 4C/8T 3.60 GHz
- (1) S26361-F3909-E716: 16GB (1x16GB) 2Rx8 DDR4-2666 U ECC
- (1) S26361-F1452-E100: Region kit APAC/EMEA/India
- (1) S26361-F2036-E100: ServerView Suite DVDs
- (1) S26361-F1790-E243: iRMC advanced pack
- (1) S26113-F575-E13: Modular PSU 450W platinum hp
- (1) S26113-F574-E99: Power Supply Dummy
- (1) T26139-Y3850-E10: No powercord as order option
| Chassis Type | Tower |
|---|---|
| Storage Drive Architecture | 2.5" |
| Power Supply Type | Hot-plug |
| Mainboard Chipset | D3673, Intel C246 |
| Processor Quantity & Type | 1 x Intel Xeon E-2200 processor family |
| Processor Model | Intel Xeon E-2234 (4C/8T, 3.60GHz) |
| Memory Slots | 4 |
| Memory Capacity (min - max) | 4GB - 128GB |
| Memory Modules Notes | 2Rx8 DDR4 U CC |
| USB Ports | USB2.0 (4), USB3.0 (4), USB3.1 G2 (2) |
| Graphics (15-pin) | 1 analog graphics interface derived from iRMC (up to 1600x1200 or 1920x1080 at 16bpp) |
| Serial (9-pin) | 1 serial RS-232-C |
| Ethernet LAN (RJ-45) | 2 x1 Gb/s Ethernet; RJ45 |
| Service LAN (RJ-45) | 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s) Management LAN traffic can be sw |
| LAN Controller | Intel i210 onboard 2 x 10/100/1000 Mbit/s Ethernet |
| RAID Controller | Onboard RAID (supports RAID 0/1) for up to 4 x SATA drives; optional RAID controller upgrade |
| SATA Controller | Intel C246, 2 ports used for accessible drives |
| Storage Drive Bay Configuration | 4 x 2.5" slots |
| Storage | Drives not included |
| Fan Configuration | 3 (processor, read, drive) |
| Power Supply Configuration | 1 x 450W power supply (option to upgrade) |
| Rated Voltage Range | 5 A (100 V) / 2.5 A (240 V) |
| Active Power (max Configuration) | 231 W |
| Apparent Power (max Configuration) | 235 VA |
| Dimensions (w x d x h) | 98 x 399 x 340 mm |
| Weight | up to 10kg |
| Standard Warranty | 1 year NBD |
| Service Level | Onsite Service |
| Support Pack Options | 3-5 year options available, response time options 4hr (choice of 24/7 or weekdays 9am-5pm) or NBD |
The FUJITSU Server PRIMERGY TX1320 M4 is an advanced, ultra-compact, silent mono-socket server, ideal for classic Small and Medium Enterprise needs, plus space constrained environments across Industry Verticals.VFY bundle contents listed below (supplier part codes have been used):
