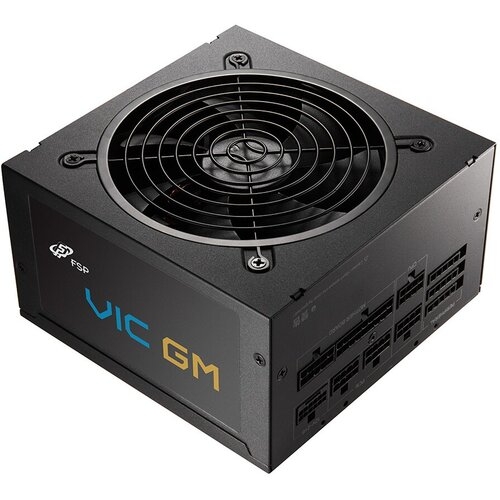

FSP 850W VIC GM ATX 3.1 GOLD MODULAR BLACK PSU, SUPPORTS PCIE 12V-2X6, BLACK FLAT MODULAR CABLES, DC-DC MODULE , AND SAFETY PROTECTIONS VIC-850GM
The Future is Now | ATX 3.1 & PCIe Gen 5.1 Ready
Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.
High efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
+12V Single Rail Design
Designed for power - intensive VGA cards Provides strong power to any overloading condition.
Quiet and long-lasting fan
Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.
Active PFC ≧ 0.9
A minimum power factor of 0.9 guarantees both system stability and efficiency.
Thermal Resilience | Power You Can Depend On.
The VIC GD power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
- Complies with ATX12V V3.1 & EPS 12V V2.92
- Supports the latest PCIe 12V-2x6 connector (850W / 750W)
- Efficiency ≧ 90% @ typical load
- Active PFC, Power Factor ≧ 0.9
- Quiet and long-lasting 120mm fan
- Durable 420V main capacitor
- Powerful +12V Single Rail Design
- +5V &3.3V DC to DC module design
- Premium, all-black cables for easier cable routing
- Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
- Meet ErP/EuP 2013 Standard
| Environmental Conditions | |
| Maximum Operating Temperature | 40°C |
| Reliability | |
| MTBF | 100000 Hour |
| Miscellaneous | |
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Gold |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Energy-using Products Directive (EuP) | |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 3 |
| Number of 4-pin Molex Power Connectors | 4 |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 150 mm |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | VIC-850GM |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Manufacturer | FSP Group USA Corp |
| Product Model | VIC-850GM |
| Product Name | VIC-850GM 850W Power Supply |
| Product Series | VIC GM |
| Brand Name | FSP Group |
| Technical Information | |
| Efficiency | 90% |
| Fan Diameter | 120 mm |
| Features | On/Off Switch |
| Low Noise | |
| Protection Type | Surge & Inrush Protection |
| Under Voltage | |
| Short Circuit | |
| Over Voltage | |
| Over Current | |
| Over Power | |
| Over Temperature | |
| No Load | |
| Fan Bearing Type | Hybrid Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Modular | Yes |
| Specification Compliance | ATX12V v3.1 |
| EPS12V v2.92 | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Power | 850 W |
| Output Voltage | 12 V DC |
| 3.3 V DC | |
| 5 V DC | |
| 5 V SB | |
| -12 V DC | |
| Output Current | 70.83 A |
| 20 A | |
| 300 mA | |
| 3 A | |
| Input Frequency | 50-60Hz |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 5 V SB @ 3 A |
| 5 V DC @ 20 A | |
| 3.3 V DC @ 20 A | |
| 12 V DC @ 70.83 A | |
| -12 V DC @ 0.3 A | |
