NETWORK
Protocol TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps

GENERAL
Operating Temperature -10–55 °C
Dimensions( H X W X D ) 246.2 × 148.2 × 45 mm
Weight 578.5 g
External Power Supply 12V DC/1.5 A
Power Consumption 4.25 W (without disk)
13.10 W (with disk)

VIDEO/IMAGE
Video Input 16-Channel IP Video Input, up to 8 MP Resolution
Video Output Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA
Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

DECODING
Decoding Format H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF

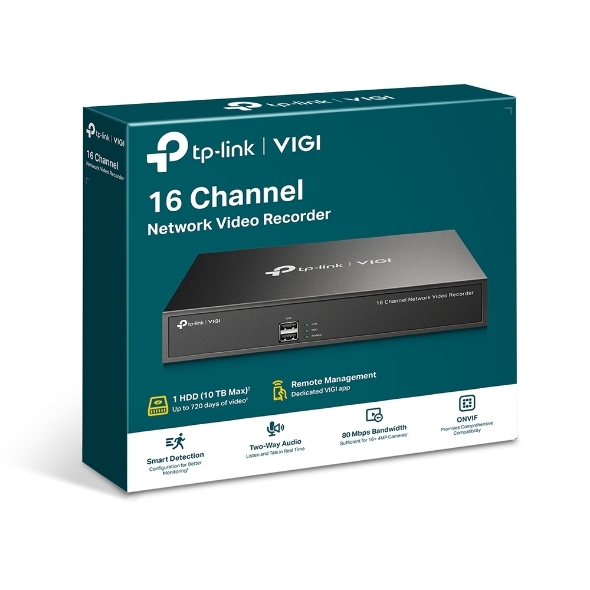

TP-Link VIGI NVR1016H 16 Channel Network Video Recorder, 24/7 Continuous Recording, Up To 10TB (HDD Not Included), 16 Channel Live View, Up To 8MP
