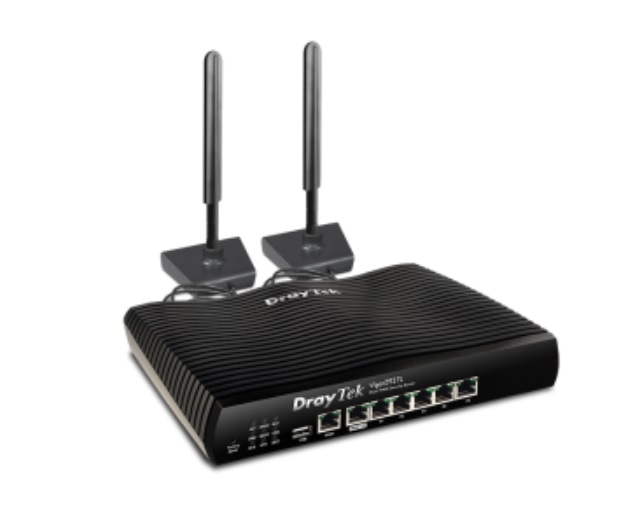

DrayTek Vigor 2927L Multi WAN Router with a Cat6 4G LTE SIM slot, 1 x GbE WAN, 1 x GbE WAN/LAN,
SKU
365930
Brand
MPN
Vigor 2927L
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$688.00
Buy Now And Earn 688 Reward Points!
QUICK OVERVIEW
and 3G/4G USB WAN port for Load Balancing and Fail-over, 5 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 50 x VPNs, 25 x SSL VPNs, and support VigorACS 2
Interface
| Interface | |
|---|---|
| Fixed WAN Port | 1x Gigabit Ethernet |
| LAN/WAN Switchable Port | 1x Gigabit Ethernet |
| Fixed LAN Port | 5x Gigabit Ethernet |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| RJ-11 Port for Voice | 2x FXS (V model) |
| Wi-Fi Antenna | 2x External Dipole Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz (wireless model) |
| 2.4G WLAN | 802.11n 2×2 MIMO 400Mbps (ac/Vac model) |
| 5G WLAN | 802.11ac Wave 2 2×2 MU-MIMO 867Mbps (ac/Vac model) |
Performance
| Performance | |
|---|---|
| NAT Throughput | 800 Mbps |
| IPsec VPN Performance | 290 Mbps (AES 256 bits) |
| SSL VPN Performance | 120 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 50 |
| Max. Concurrent OpenVPN + SSL VPN | 25 |
Internet Connection
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Wireless WAN | (ac/Vac model) |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN Management
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| Local RADIUS server | |
| SMB File Sharing (Requires external storage) | |
VPN
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN (Host to LAN) |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
Firewall & Content Filtering
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
Bandwidth Management
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritisation | |
Wireless LAN (wireless model)
| Wireless LAN (ac/Vac model) | |
|---|---|
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, Mixed (WPA+WPA2) |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | PIN, PBC |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | |
| Band Steering | |
| MU-MIMO | |
| WMM | |
VoIP Gateway (Vac model)
| VoIP Gateway (Vac model) | |
|---|---|
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 12 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
Multi WAN Router with a Cat6 4G LTE SIM slot, 1 x GbE WAN, 1 x GbE WAN/LAN, and 3G/4G USB WAN port for Load Balancing and Fail-over, 5 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 50 x VPNs, 25 x SSL VPNs, and support VigorACS 2
