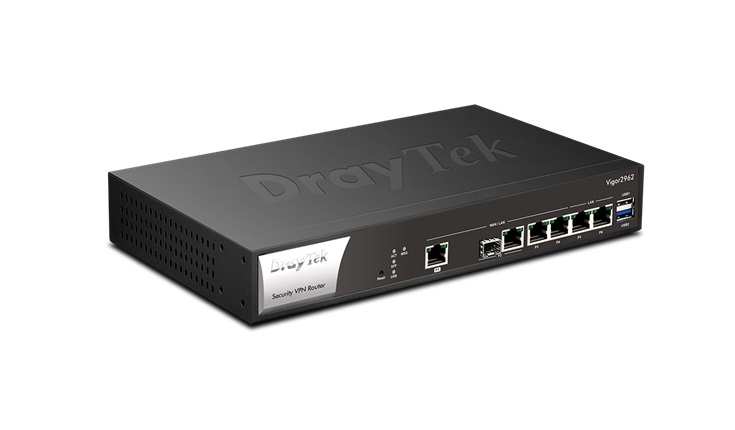

Draytek Multi WAN Router: 1 x 2.5 GbE WAN, 1 x GbE Combo WAN for Load Balancing and Fail-over, 4 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 200 x VPNs, 50 x SSL VPNs, and support VigorACS 2/3 Vigor 2962
SKU
385209
Brand
MPN
Vigor 2962
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$769.00
Buy Now And Earn 769 Reward Points!
| Interface | |
|---|---|
| LAN/WAN Configurable Port | 1x 2.5G Ethernet, RJ-45 (PoE capable port for P model) 1x GbE/SFP Combo 2x GbE, RJ-45 (PoE capable port(P4) for P model) * up to 2 simultaneous WANs |
| Fixed LAN Port | 2x GbE, RJ-45 (PoE capable ports for P model) |
| USB Port | 1x USB 2.0 + 1x USB 3.0 for USB disk storage (since f/w v3.9.4) |
| Performance | |
|---|---|
| NAT Throughput w/ Hardware Acceleration | 2.2 Gbps |
| IPsec VPN Performance | 1 Gbps (AES 256 bits) |
| SSL VPN Performance | 800 Mbps |
| Max. Number of NAT Sessions | 300,000 NAT sessions (since f/w v3.9.6) |
| Max. Concurrent VPN Tunnels | 200 |
| Max. Concurrent OpenVPN/ SSL-VPN | 50 |
| PoE (P model) | |
|---|---|
| PoE Capable Ports | 4 (P1/P4/P5/P6) |
| PoE Standards | PoE/PoE+ (802.3af/802.3at) |
| Power Budget | 65 watts |
| PD Device Check | |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping, Strict ARP |
| WAN Data Budget | (since f/w v3.9.6) |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 20 |
| Number of LAN Subnet | 20 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP (IPv4) |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN (Host to LAN) |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (* subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
| VoIP Prioritisation | |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 50 VigorAPs |
| Central Switch Management | 30 VigorSwitches |
| Physical | |
|---|---|
| Rack Mountable | Mouting Kit Included |
| Power Supply | AC 100-240V @ 1A |
| Max. Power Consumption | 100 watts (P model) |
| Dimension | 273mm x 171mm x 45mm |
| Weight | 1.53 kg (P model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
