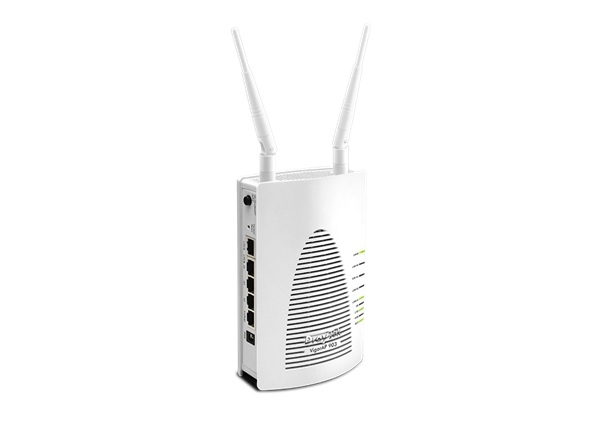

DrayTek Vigor AP 903 802.11ac Wave 2 Access Point with Mesh Wi-Fi, 4 x GbE ports, 1 x Gigabit PoE PD port, and Dual-LAN segments
SKU
367284
Brand
MPN
Vigor AP 903
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $219.00 Regular Price $252.00
Buy Now And Earn 219 Reward Points!
| Interface | |
|---|---|
| LAN Port | 5x Gigabit Ethernet (1 PoE) |
| USB Port | 1x USB 2.0 |
| Antenna | 2x Dual-Band SMA Detachable Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz |
| Button | 1x Factory Reset 1x Wireless On/Off/WPS 1x Power On/Off |
| Capacity | |
|---|---|
| 2.4GHz Peak Speed | 400 Mbp |
| 5GHz Peak Speed | 867 Mbps |
| Max. Number of Connective Clients | 128 (64 per radio band) |
| WLAN | |
|---|---|
| 2.4GHz Standard | IEEE 802.11b/g/n |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2 |
| MIMO | 2×2 MU-MIMO (2-stream) |
| Operating Mode | AP, Mesh, Range Exntender |
| Fast Roamding (WPA2/802.1x) | |
| AP-Assisted Roaming | |
| AirTime Fairness | |
| Band Steering | |
| Max. Number of SSID | 8 (4 per radio band) |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | |
| Client Isolation | |
| Access Control List | |
| Bandwidth Limit per Client | |
| Client Numer Limit | Per radio, Per SSID |
| Connection Time Control | |
| Mobile Device Management | |
| WMM | |
| Application | |
|---|---|
| Built-in RADIUS Server | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), Vigor Router APM |
| Tools | Speed Test, AP Discovery, Statistics |
| Syslog | |
| SNMP | v2, v2c, v3 |
| Managed by VigorACS | |
| Physical | |
|---|---|
| Environment | Indoor |
| Mounting | Wall Mount, Desktop |
| Power Method | DC, 802.3at PoE |
| Max. PoE Output | 18 watts |
| Dimension | 168mm x 108mm x 45mm |
| Weight | 360 g including antenna |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate |    |
