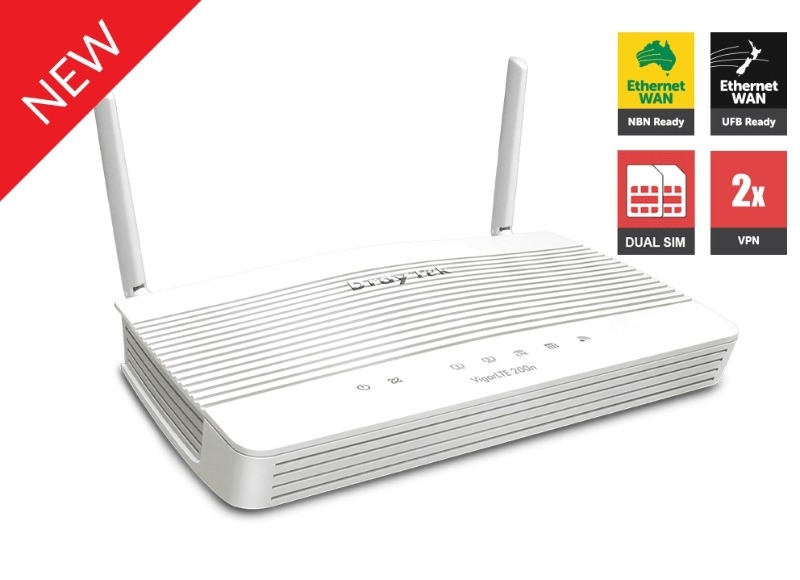

DrayTek Vigor LTE 200n 4G LTE Router with dual SIM card slots, Gigabit Ethernet WAN, SPI Firewall,
SKU
367966
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
2 x VPN tunnels including 2 x SSL-VPN tunnels and 802.11n Wi-Fi
| Interface | |
|---|---|
| LAN/WAN Switchable Port | 1x GbE RJ-45 (LAN P2 can be Configured as Ethernet WAN) |
| Fixed LAN Port | 1x GbE RJ-45 |
| SIM Slot | 2x Standard-sized SIM slots |
| LTE Antenna | 2x Detachable Antennas |
| 2.4G WLAN | 300Mbps 802.11n |
| Wi-Fi Antenna | 2x 2dBi Internal |
| Performance | |
|---|---|
| NAT Throughput | 300 Mbps |
| IPsec VPN Performance | 25 Mbps (AES 256 bits) |
| SSL VPN Performance | 25 Mbps |
| Max. Number of NAT Sessions | 30,000 |
| Max. Concurrent VPN Tunnels | 2 |
| Max. Concurrent OpenVPN + SSL VPN | 2 |
| LTE | |
|---|---|
| LTE Category | 4 |
| Max. Data Rate | 150 Mbps downlink, 50 Mbps uplink |
| FDD Band | 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz) |
| WCDMA (3G) Band | 1, 5, 8 |
| GSM/GPRS/EDGE Band | 900, 1800 MHz |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| LTE WAN Bridge | DHCP Client |
| Multi-VLAN/PVC | |
| WAN Failover | (Lac model) |
| Connection Detection | ARP, Ping |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, RIPv2 |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2 |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA1, SHA256, MD5 |
| NAT-Traversal (NAT-T) | |
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, Web Features, Web Category (subscription required) |
| DoS Attack Defense | |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| Wireless LAN | |
|---|---|
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, WPS |
| Authentication | Pre-Shared Key, 802.1x |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| WMM | |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069, SMS Sending & Recieving |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 2 VigorAPs |
| Physical | |
|---|---|
| Power Supply | DC 12V @ 1A |
| Dimension | 207mm x 131mm x 39mm |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
