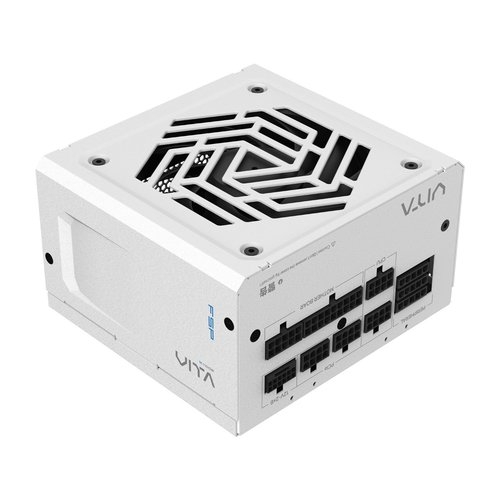

FSP VITA GM 750W PSU complies with ATX 3.1, supports PCIe 12V-2x6, features Gold certification, LLC Resonant-converter Topology, Japanese capacitors, fully modular design, and safety protections VITA-750GM W

SKU
433073
Brand
MPN
VITA-750GM W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $152.00 Regular Price $174.00
Buy Now And Earn 152 Reward Points!

Complies with Intel Power Design Guide ATX 3.1

Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.

High Efficiency in Gold-certified

Certified by world-class organizations 80 PLUS® gold certifications and efficiency close to 92% at typical load for lower power loss, less heat, and quieter operation.

LLC Resonant-converter Topology with Synchronous Rectifier

Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.

+5V & 3.3V DC to DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

105°C Japanese Bulk Capacitor

Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.

120 mm hydraulic bearing (HYB) fan

Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.

Powerhouse Single +12V Rail

This high-amperage +12V rail delivers high load capabilities, it's ideal for intensive workloads of high-performance CPUs and graphics cards.

The Force Comes with You

Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.

The Force Comes with You

Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.

Modular Design with All-White Cables

The VITA GM white version features completely white modular cables and cable connectors, creating an ultra-cool, all-white aesthetic. Its fully modular cabling design makes power supply installation easy, allowing users to use only the needed cables, which improves airflow and reduces system clutter.

Compact PSU Size:140 x 150 x 86mm

140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.

Fortress-level Protection

Our comprehensive circuit shields your valuable components from harm.

  • Complies with ATX 12V V3.1 & EPS 12V V2.92
  • Efficiency ≧ 90% at typical load
  • 80 PLUS ® gold certified
  • 105°C Japanese bulk capacitor
  • 120mm hydraulic bearing ( HYB ) fan
  • Fully modular cabling design
  • Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
Environmental Conditions
Maximum Operating Temperature40°C
Miscellaneous
Energy Efficiency Certification80 Plus Gold
Interfaces/Ports
Number of SATA Power Connectors8
PCI Express ConnectorYes
Number of (4+4 pin) CPU Power Connectors2
Number of (6+2 pin) PCI Express Power Connectors4
Number of 4-pin Molex Power Connectors4
Physical Characteristics
Form FactorATX
Internal
Height86 mm
Width150 mm
Depth140 mm
Product ColorWhite
Color FamilyWhite
General Information
Product TypePower Supply
Manufacturer Part NumberVITA-750GM, W
Manufacturer Website Addresshttp://www.fspgroupusa.com
ManufacturerFSP Group USA Corp
Product ModelVITA-750GM (White Edition)
Product NameVITA-750GM (White Edition) 750W Power Supply
Product LineVITA GM
Brand NameFSP Group
Technical Information
Efficiency90%
Fan Diameter120 mm
FeaturesLow Noise
On/Off Switch
Protection TypeShort Circuit
Over Voltage
Over Temperature
Surge & Inrush Protection
Under Voltage
Over Current
No Load
Over Power
Fan Bearing TypeHydraulic Bearing
Number of Fans1
Power Factor Correction (PFC)Active
ModularYes
Specification ComplianceEPS12V v2.92
ATX12V v3.1
Power Description
Input Voltage230 V AC
120 V AC
Output Power750 W
Output Voltage-12 V DC
12 V DC
3.3 V DC
5 V DC
5 V SB
Output Current20 A
3 A
300 mA
62.50 A
Input Frequency50-60Hz
Number of +12V Rails1
Output Voltage Detail-12 V DC @ 0.3 A
12 V DC @ 62.5 A
5 V SB @ 3 A
5 V DC @ 20 A
3.3 V DC @ 20 A
