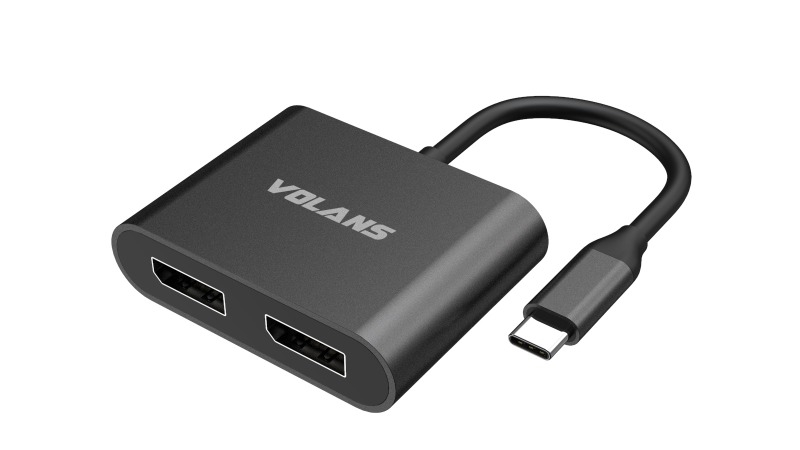

VOLANS Aluminium 8K USB-C to Dual DisplayPort Adapter with MST Dual Monitor VL-UC2DP
This DisplayPort adapter supports DisplayPort 1.4 specification for the higher-requirement computers and monitors with up to 8K@60Hz or 4K@120Hz performance.
Support Multi-Stream Transport (MST), streaming to extra dual independent displays up to 4K@60Hz.
Windows OS is able to turn on the Screen Mirroring and Extend on the external monitors. MacOS does not support MST, a single extra independent display can be streaming on the external monitors.
USB-C connector allows you to connect with a computer or a tablet which equipped Thunderbolt 3 port or USB-C port that supports DisplayPort Alt Mode (DP Alt Mode).
Support HDCP 2.2, meet the requirements of Ultra HD Netflix or Amazon Prime Video and more.
Portable with a diminutive dimension.
Bus-powered, no power adapter needed.
Plug and play, no driver required.
| WARRANTY INFORMATION | |
|---|---|
| Warranty | 1 Year |
| HARDWARE | |
| 8K Support | Yes |
| Bus Type | USB-C |
| Chipset ID | VL100+RTD2186 |
| Displays Supported | 2 |
| PERFORMANCE | |
| Maximum Digital Resolutions | USB-C DP1.4: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST): 4K@60Hz USB-C DP1.2: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST): 4K@30Hz MST mode only compatible with Windows OS. Only SST is supported on Mac OS. |
| CONNECTOR(S) | |
| Connector Type(s) | 1 – USB Type-C (24 pin) USB 3.0 Male |
| 2 – DisplayPort 1.4 Female | |
| SPECIAL NOTES / REQUIREMENTS | |
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports DP alt mode. |
| 8K@60Hz or 4K@120Hz with DisplayPort 1.4 | |
| OS Suport | Windows7/8/10/11, Google Chrome OS, Mac OS X Yosemite, Mac OS X El Capitan,Mac OS sierra or above. |
| POWER | |
| Power Source | USB-Powered |
| ENVIRONMENTAL | |
| Humidity | 0~90% RH (Non-condensing) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 5°C to 45°C |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| Enclosure Type | Aluminium |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – VL-UC2DP 1- User Manual |
