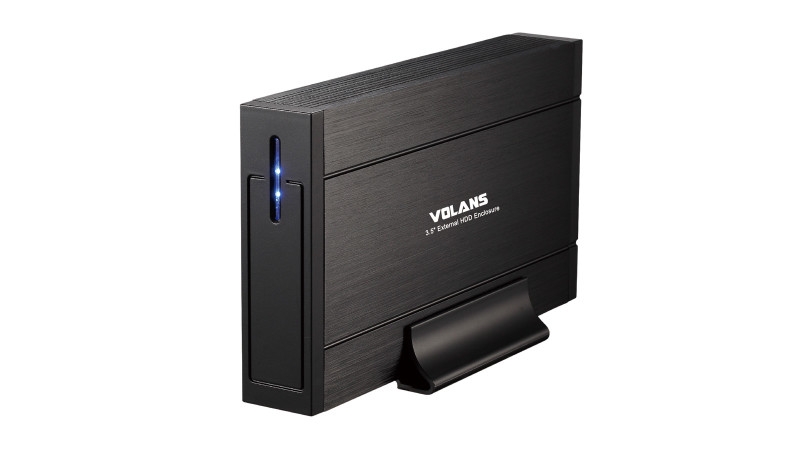

Volans Aluminium 3.5" Usb 3.0 Enclosure Vl-ue35
SKU
243160
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
Aluminium 3.5” USB3.0 HDD Enclosure (UE35)
Ideal solution for connectivity between 3.5 inch HDD and computer. Available with connectivity via SATAI,II,III interface. SATAIII is backwards compatible with SATAII which allows for faster data transfer. This Volans enclosure makes it much easy to sync data between computer and hard drive disks.
Features
- Ultra-thin and good shape design
- Support all brand standard 3.5” SATA HDD, max capacity up to 4TB
- Easy to use, support Plug & Play and hot swap
- USB3.0 speed up to 5Gbps
- Good quality aluminium housing, easy heat dissipation to prolong the HDD life
- Support system: Windows XP/Vista/7/8/8.1/10/Mac OS/Linux
Specification
| WARRANTY INFORMATION | |
|---|---|
| Warranty | 1 Year |
| HARDWARE | |
| Chipset ID | ASMedia – ASM1153 |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Drive Size | 3.5in |
| Fan(s) | No |
| Interface | USB 3.0 |
| Number of Drives | 1 |
| PERFORMANCE | |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drive |
| RAID | No |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| UASP Support | Yes |
| CONNECTOR(S) | |
| Drive Connectors | 1 – SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | 1 – USB Type-B (9 pin) USB 3.0 Female |
| SOFTWARE | |
| OS Compatibility | OS independent; No software or drivers required |
| SPECIAL NOTES / REQUIREMENTS | |
| System and Cable Requirements | Available USB port |
| INDICATORS | |
| LED Indicators | 1 – Power & Activity |
| POWER | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| ENVIRONMENTAL | |
| Humidity | Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 4.5 in [115.4 mm] |
| Product Length | 7.5 in [191.5 mm] |
| Product Weight | 11.4 oz [324 g] |
| Product Width | 1.2 in [31.4 mm] |
| PACKAGING INFORMATION | |
| Shipping (Package) Weight | 1.7 lb [0.8 kg] |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – 3.5” USB 3.0 SATA III HDD Enclosure |
| 1 – Screw Kit | |
| 1 – Power Adapter | |
| 1 – USB 3.0 Cable | |
| 1 – HDD Stand | |
| 1 – Product Manual | |
