DESCRIPTION

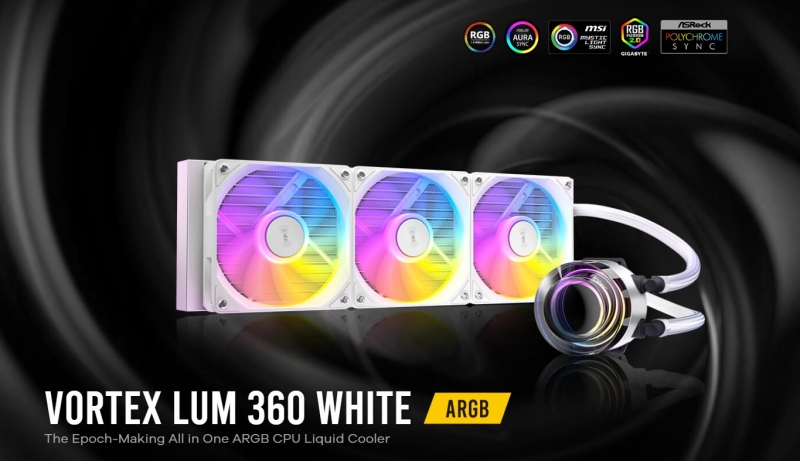

Antec VORTEX LUM 360 White ARGB The Epoch-Making All in One ARGB CPU Liquid Cooler

SPECIFICATIONS
Radiator
Radiator Dimensions 397 x 120 x 27 mm (L x W x H)
Radiator Material Aluminum
Pump
Dimensions Φ67*48.5 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ≥5.0 V
Fan Speed 2800±10% RPM
Rated Current 0.25±20% A
Consumed Power 3.0 W
Flow rate ≥1300 mL/min
Water Pressure 1.4 m
Operation Temperature -10°C ~ +60°C
Noise Level ≤28 dB(A)
Lifespan 40,000 hours
Connector PUMP: 3-pin | LED: 3-pin
Fan
Dimensions 120 x 120 x 25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 800±200~1800±10% RPM
Airflow 71.5 CFM (max.)
Air Pressure 2.45 mmH₂O (max.)
Fan Noise Level 31 dB(A)
Lifespan 40,000 hours
Connector PH 2.0 7-pin (PWM+ARGB)
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
Rated Current FAN : 0.20-0.25 A | LED : 0.32 A
Socket Compatibility CPU Intel: LGA 115X/1200/1700/20XX/1851
AMD: AM3/AM4/AM5/TR4
TDP ≤ 280W
Warranty 3 years
