AeroCool VX-650 (230V APFC) VX-650-(230V-APFC)
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
NULL
Information
Features
- 1. The most valuable power supply for entry-level system builder.
- 2. Compatible with ATX 12V 2.3.
- 3. High-end SECC with black coating casing.
- 4. Silence 12cm fan with smart fan speed control.
- 5. Support C6/C7 power saving mode on Intel Haswell CPU.
- 6. Powerful single +12V rails offer the most compatible DC output to support high-end graphic card and CPU.
- 7. Long cable length at least 450mm supports high-end case with "Bottom" PSU position.
- 8. OPP/OVP/UVP/SCP electrical protection included.
Technical Specifications
Cables:
- 1 x 20 + 4 PIN
- 1 x 4 + 4 PIN
- 3 x 4 PIN
- 4 xSATA
- 1 xFDD
- 2 x 6 + 2 PIN
Power Specifications:
- AC Input:230VAC5A47-63Hz
- DC Output:Max Current/Wattage
- +3.3V:20A/120W
- +5V:17A/120W
- +12V:50A/600W
- -12V:0.3A/3.6W
- +5Vsb:2.5A/12.5W
- Total Combined Wattage:650W
Environmental Requirements:
- Operating / Storage Temperature Range:
- Operating ambient:0Cmin ~ +40Cmax
- Non operating ambient:-20C~ +60C
Humidity (non condensing):
- Operating ambient:10% ~ 90% relative humidity
- Non operating ambient:5% ~ 95% relative humidity
Noise Level Output:Loading(%) / Noise (dBA)
- 20%/19.3dBA
- 40% / 21.1dBA
- 60% / 24.8dBA
- 80% / 28.2dBA
- 100% / 32.1dBA
| Name | Value | |
|---|---|---|
| Compatible/Used for | ||
| Connectors | ||
| Dimensions | ||
| Form Factor | ATX PSU | |
| Input Voltage | 230VAC 5A 47-63Hz | |
| Max. Combined Power | 120W, 600W, 3.6W, 12.5W, 600W | |
| Max. Output Current | 20A, 17A, 50A, 0.3A, 2.5A | |
| Power Output | +3.3V, +5V, +12V, -12V, +5Vsb | |
| Type | ||
| Warranty | 2 Years |

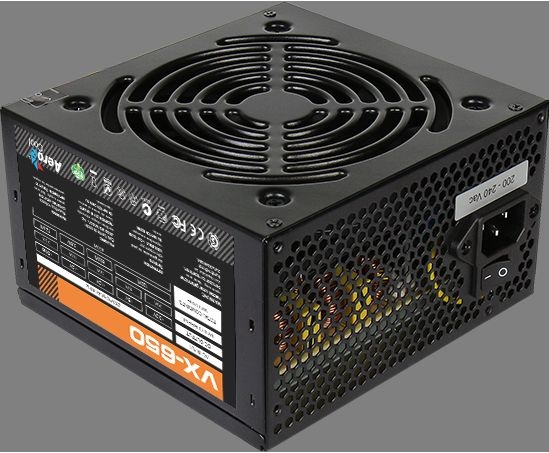

Aerocool VX 650
Valued PSU for System Builders
VX power supply is the Most Valued Power for entry system builders from Aerocool, targeting at performing stable and reliable performance with high quality components.
Basic, but not the Lease
VX power supply is suitable for entry-level PCs but nonetheless Aerocool puts in all features that a modern PSU would have: 12cm fan with thermal speed control, output protections, and clean DC outputs with low ripple & noise.
