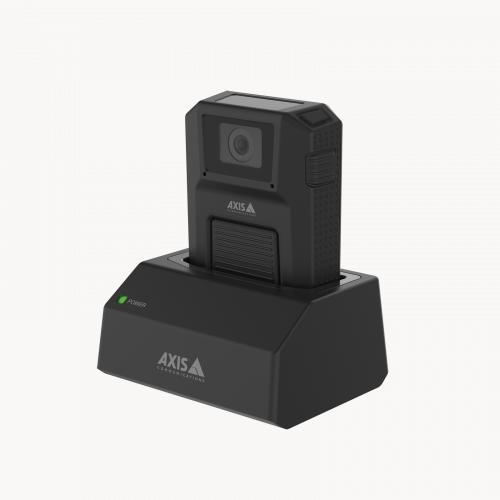

AXIS W700 DOCKING STATION 1-BAY
AXIS W700 Docking Station 1-bay supports fast, easy handling of your Axis body worn cameras. Charging is quick and data offloading is fast and secure. So your cameras are ready when you are. AXIS W700 Docking Station 1-bay is a sturdy, splash-proof standalone docking station that’s compatible with the separate AXIS W800 System Controller. So there’s no need to store the docking station in a climate-controlled room. It’s robust enough to keep where it’s easiest for the people who use it to get to.
Network
Supported
protocols
IPv4, IPv6 USGv6, HTTPS, Bonjour, DNS, NTP, TCP, UDP, ICMP,
DHCP, ARP
Throughput 100 Mbit/s
General
Capacity 1 bay
Casing Plastic casing
Color: black NCS S 9000-N
Sustainability PVC free
Power 4.8–5.2 V DC, max 9 W
Connectors Shielded RJ45 10BASE-T/100BASE-TX
DC input
Pogo pin pads
Operating
conditions
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10–85% RH (non-condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 10-85% RH (non-condensing)
Approvals EMC
EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B),
RCM AS/NZS CISPR 32 Class B
Safety
IEC/EN/UL 62368-1
Environment
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-78
Network
Compatible with NIST SP500-267 throughput
Dimensions Height: 47 mm (1.9 in)
Width: 76 mm (3.0 in)
Depth: 95 mm (3.8 in)
Weight 130 g (0.29 lb)
Warranty 3-year warranty, see axis.com/warranty
