BizVideo Video Conference Wall Mount Kit to suit IPE-BV21PTZCONF , Inc Mounting Hardware WALLMOUNT- BV

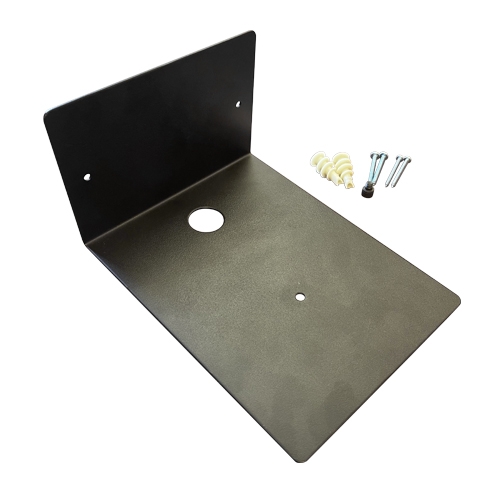

Kit Contents
1 x Wall Mount Bracket
1 x �� UNC x �� Camera Mount Screw
2 x 8G x 38mm Phillips Self Tapping Screws
2 x 6G x 38mm Phillips Self Tapping Screws
2 x Nylon Plasterboard Anchors
1 x Mounting instruction sheet
Instructions
���Select a position so the camera is at a good level to the audience for best
viewing.
���The Wall mount bracket can be installed with the base pointing up or down
depending on your requirements or aesthetics.
���Fix the bracket to the wall using the screws provided. Use the 8G screws if
fixing directly to a stud beam or the 6G screws and Nylon Plasterboard anchors
if fixing into drywall/plasterboard sheet.
���You can use the bracket as a template for the screw hole position.
���Ensure the bracket base is horizontal/level so the camera moves from side to
side smoothly.
���Ensure the DIN connector or cable does not have a sharp bend or forces pressure
on the Camera���s DIN connector as this may void the Camera���s warranty.
