DESCRIPTION

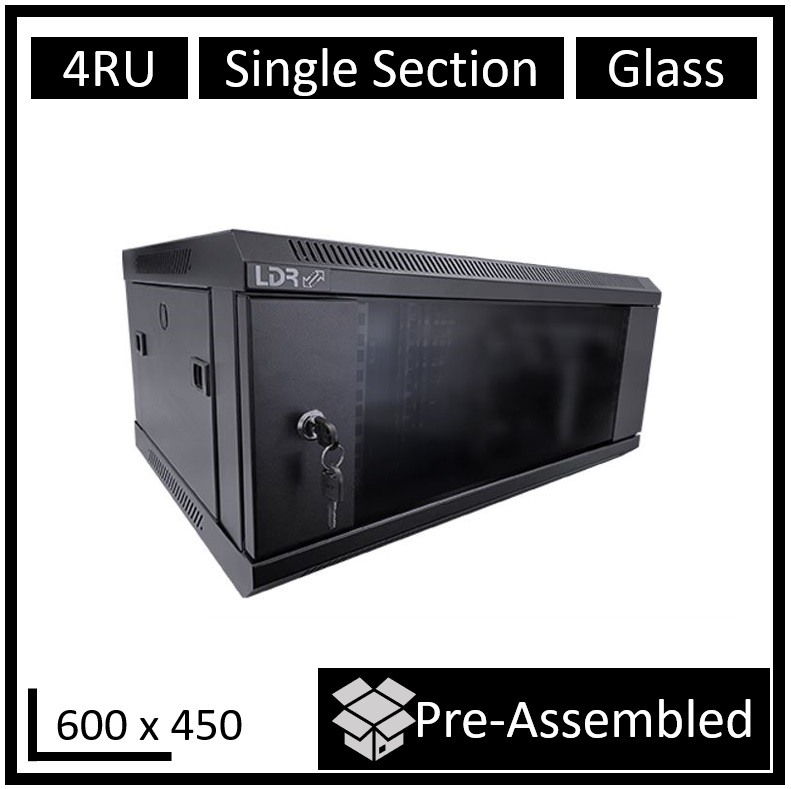

The LDR single section hanging cabinets of the mounting height 4U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

FEATURES

Side doors mounted on latches with a lock assembly option
A frame with a load capacity of 60kg
Protection class IP20
Front door - glass

SPECIFICATIONS

Nominal height 4U
Total outer height 280mm
Outer width 600mm
Outer depth 450mm
Mounting depth 400mm
Colour Black
Maximum load capacity 60kg
Protection class IP20
Front doors Glass with a lock
Back doors n/a
Side panels Full steel dismounted on latches with a lock assembly option
Packaging Dimensions 1x Carton, 110mm x 635mm x 485mm
