• NBN (National Broadband Network – Australia) Ready
• UFB (Ultra-Fast Broadband – New Zealand) Ready
• Built-in VDSL2 / ADSL2+ modem
• Selectable Gigabit WAN / LAN (for NBN Network Termination Device or other xDSL / Cable modem)
• 4 x Gigabit LAN ports with 30,000 NAT sessions and IPv6
• Object-based SPI Firewall, Content Security Management (CSM) and QoS
• 2 x VPN tunnels with hardware accelerator
• 2 x USB ports for 3G / 4G Backup, FTP server & network printers
• IEEE 802.11n Wireless LAN
• Support TR-069 for VigorACS SI Central Management
• 2 years back to base warranty

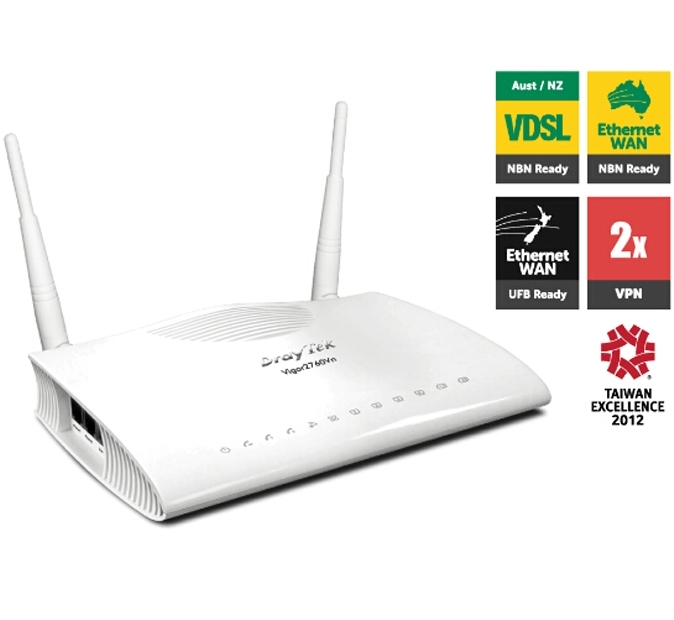

The Vigor2760 series VDSL2/ADSL2+ routers are designed for VDSL2 broadband network and can also support ADSL2/2+ fixed line. There are three models: Vigor2760, Vigor2760n (with IEEE 802.11n WLAN), and Vigor2760Vn (with VoIP and IEEE 802.11n WLAN, coming soon). With future IPv6 support for future network and higher-speed WAN throughput, the high-definition multi-media streaming is available for home entertainment and digital learning. The embedded VPN connections can allow family members to utilize ultimate broadband performance to realize home office. The MAC access control, multiple-SSID, authentication management on WLAN creates much secure wireless network. The users of your connected PCs can use Web Portal Log-in and Bulletin Board to remind each other. The content security management (CSM) prevents your family or home office from unwanted web sites/access.

Drayek implemented Dashboard on WUI of Vigor2760 series in order to let you have summarized data of  WAN/LAN/WLAN functionality.

1. ADSL2/2+ & VDSL
   • Compliant with ITU-T VDSL2 G.993.2
   • Compliant with G.997.1
   • Band Plan: 998, 997
   • Annex A, Annex B
   • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
   • VDSL2 PTM
   • UPBO, DPBO Supported
   • US0 Supported
   • Compatible with POTS, PSTN
   • Capability Fall back to ADSL2/2+ Standards
   • Multi-VLAN
   • Multi-PVC
2. IP Version
   • IPv4
   • IPv6
3. Switch
   • Two Subnets
   • 802.1q Bridge
   • IGMP Snooping

     Note:
     The 2nd subnet feature is availabe only on certain variations of this product. Please
     check with your local DrayTek office or dealer for specific feature support.

4. WAN Protocol
   • DHCP Client
   • Static IP
   • PPPoE
   • 3.5G Connection and Backup
5. Content Security Management
   • IM/P2P Applications Filter
   • URL Content Filter
   • GlobalView Web Content Filter (Powered by  )
6. Firewall
   • DMZ Host, Open Port, Port-redirection
   • Object-based Firewall
   • Local Filter with QoS
   • MAC Address Filter
   • SPI (Stateful Packet Inspection)
   • DoS/DDoS Prevention
   • Web Syslog
   • Logging via Syslog
   • E-mail Alert
   • Bind IP to MAC Address
   • Time Schedule Control
7. VPN
   • 2 VPN Tunnels
   • VPN Passthough
   • IPsec Encryption: AES, 3DES, DES
   • IPsec Authentication: MD5, SHA-1
   • IPsec DPD (Dead Peer Detection)
   • IPsec Aggressive Mode
   • IKE Authentication: Pre-shared Key, X.509
   • PPTP MPPE
   • L2TP over IPsec
   • DHCP over IPsec*
8. Network Feature
   • DHCP Server/Client
   • DHCP Option*
   • UPnP 30 sessions (at least)
   • IGMP V2/V3
   • DNS Cache/Proxy
   • Dynamic DNS
   • NTP Client
   • Static Routing
   • RADIUS Client
   • RIP v1/v2
9. Network Management
   • Web-based User Interface (HTTP/HTTPS)
   • Quick Start Wizard
   • CLI (Command Line Interface, Telnet/SSH)
   • Configuration Backup/Restore
   • Built-in Diagnostic Function
   • Firmware Upgrade via WUI
   • Multi-level User Management
   • Administration Access Control
   • Logging via Syslog
   • Management Session Time out
   • SNMP Management MIB-II
   • Data Flow Monitor
   • TR-069
10. USB Port
    • Printer Sharing
    • File System
      • FAT32/NTFS file system
      • FTP function for file sharing
    • 3G as Back Up
    • NAS Facility (Add a USB Memory Sticks or USB Hard Drives for Shared LAN Multimedia Storage/Access)
    • The Above Mentioned NAS Also Support a Built-in DLNA Server*
11. USB Port
    • Layer 3 QoS by IP, Port, Protocol
    • Bandwidth/Session Limitation
12. Declaration of Conformity
