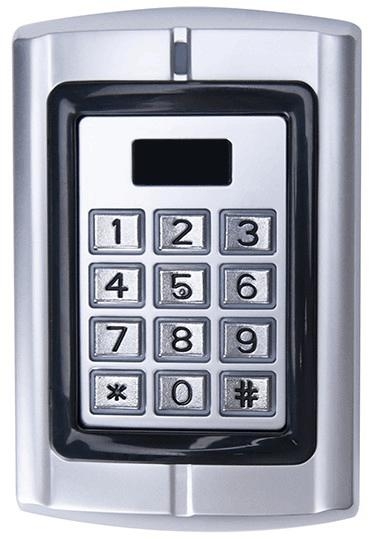

SECOR STANDALONE DOOR CONTROLLER OR WIEGAND KEYPAD PROX READER IK10 IP65 1YR WKP20
SKU
433000
Brand
MPN
WKP20
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$157.00
Buy Now And Earn 157 Reward Points!
SECOR Standalone or Wiegand Keypad/ Reader.
The WKP20 can be used as a Standalone Keypad/ Reader or changed to a Wiegand 26 bit Keypad/ Reader. IP65 and IK10 Rated.
Used for various fields such as commercial building, home, villa, and prison.
• Option for EM & HID card , 125KHz.
• Specific reader mode: Set output format.
• Access mode: card; PIN, card+PIN
• Supports add user card, delete user card, anti-duress card, normal open card, authorization card
• User capacity: 20000; Manager cards max:21pcs
• Key # can be used as door bell button.
• Self-adaption infrared detection
• Wiegand 26
| Inputs | 4-6 digits PIN or EM&HID 125KHz or Mifare 13.56MHz cards |
| Output | Relay and Wiegand |
| User Capacity | 20 000 |
| Input voltage | 10-28VDC |
| Standby current | <= 35mA |
| Max operating current | <=100mA @12VDC |
| Operating temperature | -40 to 60 |
| Operating humidity | 0-98% (non-condensing) |
| Dimensions | 128 x 82 x 28mm |
| Vandal Resistant | IK10 |
| Outdoor Rating | IP65 |
| Lock signal relay contact current | ≤1A |
SECOR STANDALONE DOOR CONTROLLER OR WIEGAND KEYPAD PROX READER IK10 IP65 1YR
