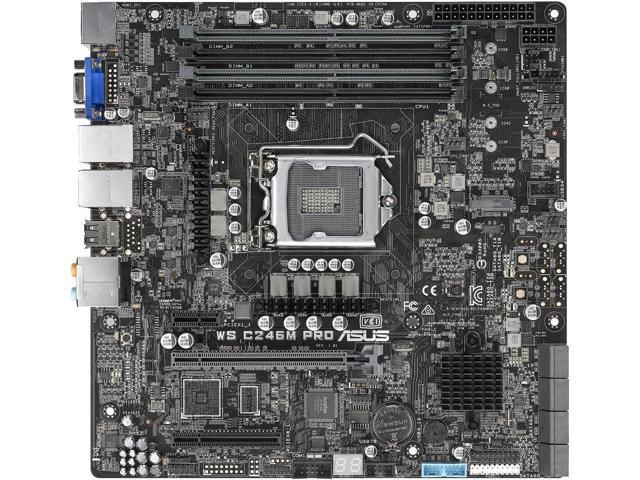

Asus Ws C246M Pro Lga1151 Ecc Ddr4 M.2 C246 Server Workstation Micro Atx Motherboard For 8Th Generation

SKU
272873
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$10.00
Buy Now And Earn 10 Reward Points!

QUICK OVERVIEW

Intel® Core™ and Intel® Xeon® E-Series Processors with SafeSlot, Dual Gigabit LAN and USB 3.1 Type A/C WS C246M PRO

ASUS WS C246M PRO LGA1151 ECC DDR4 M.2 C246 Server Workstation Micro ATX Motherboard for 8th Generation Intel® Core™ and Intel® Xeon® E-Series Processors with SafeSlot, Dual Gigabit LAN and USB 3.1 Type A/C

  • Designed for 8th generation LGA1151 socket Intel® Core™ and Intel® Xeon® E-Series Processors featuring dual M.2, front panel USB 3.1 Gen2, Dual Intel® Gigabit LAN, support for ECC DDR4, and Intel® Optane™ Memory compatibility
  • Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs
  • Supports up to three independent displays simultaneously for better multitasking and enhanced productivity
  • 8-channel HD audio enhanced by ASUS exclusive Realtek ALC887 high definition audio CODEC
  • Complete IT Infrastructure Management with in-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching

Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.



Powerful performance with Intel®Xeon® E processor and ECC memory
WS C246M PRO supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously

WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.
Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for fast transfer speeds of up to 10Gbps

WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.
SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ASUS Control Center

WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Learn more about ASUS Control Center >

  • Processor / System Bus
    1 x Socket LGA1151
    Intel® Xeon® processor E-2100 family
    Intel® Pentium™ processors
    Intel® Celeron™ processors
    Intel® Core™ i7/i5/i3 processors

  • Core Logic
    Intel® C246 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 64GB UDIMM
    Memory Type :
    Dual Channel DDR4 2666/2400 /2133
    Memory Size :
    16GB, 8GB UDIMM
  • Expansion Slots
    Total Slot : 3
    Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
    Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
    Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
  • Form Factor
    U ATX (9.6"x9.6", 244mm x 244mm)
  • Storage
    SATA Controller :
    Intel® C246 Chipset
    8 x SATA3 6Gb/s ports
    Intel® Rapid Storage Technology(RST) (For Linux/Windows)
    (Support Software RAID )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
  • Networking
    1 x Intel® I210AT
    1 x i219-LM
  • On Board I/O
    2 x USB 2.0 pin header
    1 x USB 3.0 pin header
    1 x M.2 Connector , NGFF Type : 2280/2260/2242
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x COM port
    1 x TPM header
    1 x S/PDIF Out (Optical)
  • Back I/O Ports
    2 x USB 3.1 ports (Type A)
    2 x USB 3.0 ports
    2 x USB 2.0 ports
    1 x HDMI
    1 x DisplayPort
    1 x VGA
    2 x RJ-45 ports
    8-channel Audio I/O ports (5+1 Audio jacks)

  • Management Solution
    WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE

  • Accessories
    Gift Box (1-in-1)
    1 x Support CD
    1 x I/O shield
    8 x SATA 6G cables
    1 x Com port cable
    1 x User manual
    1 x Quick start guide
    1 x M.2 screw

    Bulk Pack (10-in-1)
    1 x Support CD
    10 x I/O shield
    80 x SATA 6G cables
    10 x Com port cable
    1 x User manual
    1 x Quick start guide
    10 x M.2 screw
  • Monitoring
    CPU Temperature
    Fan RPM
