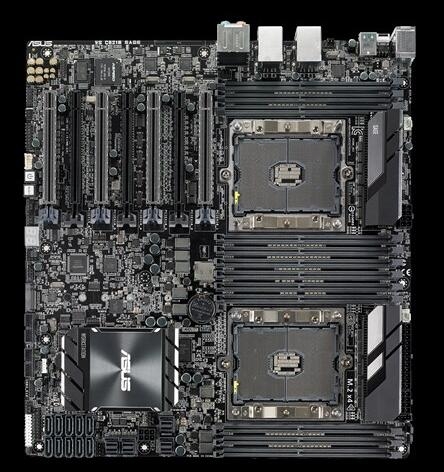

main product photo

Asus Ws C621e Sage Dual Lga3647 Atx Workstation Board Xeon Scalable/12x Dimm(max 768gb)/1x M.2/4x

SKU
256752
Brand
Asus
Manufacturer Link
MPN
WS C621E SAGE
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$5.00
Buy Now And Earn 5 Reward Points!

QUICK OVERVIEW

U.2/10X SATA6G/2X INTEL I210-AT GIGABIT LAN WS C621E SAGE
Add to Compare

Intel® C621 motherboard with quad-strength graphics support and 12 DDR4 memory slots

  • Up to 4-Way NVIDIA® SLI® and AMD® Crossfire X™ on demand
  • Two-way Xeon® CPU OC tuning for extreme performance
  • Superb scalability and connectivity with onboard U.2, M.2, and USB 3.1 Type-C and Type-A
  • Built with premium components for excellent power efficiency
  • Easy Management and maintenance with ASUS Control Center (ACC) management software and USB BIOS Flashback
Extreme Power and Performance

　
Up to 4-way multiple-graphic cards
The Intel® C621 chipset-based dual socket workstation motherboard features on-demand NVIDIA® SLI™ and AMD® CrossFireX™ technology.

ASUS WS C621E SAGE accommodates up to four dual-width graphic cards with a four true PCIe Gen3 x16 link to unleash maximum graphic performance. With support for up to 4-way NVIDIA® SLI™, AMD CrossFireX™, and 2-Way NVIDIA Quadro®SLI™, WS C621E SAGE is an excellent choice for content creators, mechanical or architectural engineers, and anyone with processing-intensive workloads.
Extraordinary performance with dual Intel®Xeon® CPU overclocking
Dual Intel® Xeon® CPU overclocking, pushes the power processing power beyond the extreme
ASUS WS C621E SAGE breaks performance barriers, giving you the capability to overclock dual Xeon® CPUs. With its unique BIOS mechanism dedicated to boosting CPU performance, WS C621E SAGE can deliver incredible system speed.

Expandable and Scalable

　
Supporting up to 12 DDR4 Error-correcting code memory (ECC Memory)

　
Keeps your system running at a brisk pace, even when running multiple hardware-intensive programs! ASUS WS C621E SAGE supports up to 12 DDR4 error-correcting code (ECC) memory to ensure fast and responsive system performance, even when running multiple RAM-intensive applications — such as video, audio and image editing applications — simultaneously.

　
Lightning-fast storage speed with NVMe PCIe SSD RAID 0 support

　
With support for multiple NVMe PCIe storage devices configured as a RAID 0 array, ASUS WS C621E SAGE lets you enjoy lightning-fast data transfers that are far beyond those provided by single drives.

Super-fast transfers at up to 32Gbps with onboard four U.2 and M.2
ASUS WS C621E SAGE is built with onboard M.2 and U.2 connectors to fit both 2.5-inch NVMe and M.2 SSDs. By using the maximum PCIe Gen3.0 x4 bandwidth of 32Gbps, WS C621E SAGE enables data transfer speeds that are up to 5.3X faster than traditional storage devices.


10Gb/s USB 3.1 Gen2 onboard
With backward-compatible USB 3.1 Gen2 Type-A and reversible USB 3.1 Gen2 Type-C ports, you'll experience ultimate connection flexibility and data-transfer speeds of up to 10Gb/s — twice as fast as USB 3.0 or USB 3.1 Gen1.
Exclusive audio features with Realtek® codec and unique design features for pristine and powerful audio
Not satisfied with a single storage device read/write speeds? Then join the fast lane and build a RAID 0 array using NVMe PCIe storage drives to enjoy data transfers at lightning speeds!

ASUS WS C621E SAGE has a unique audio codec designed in close collaboration with Realtek®. The Realtek® S1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and an 113dB SNR for the line-in, providing pristine audio quality
Immersive headphone audio with DTS Headphone:X™
Offers 3D surround-sound technology for incredibly rich audio with all types of headphones.
  • CPU
    * Refer to www.asus.com for CPU support list
    Dual Intel® Socket P (LGA 3647) for Intel® Xeon® Scalable Processors Family (205W)
  • Chipset
    Build in Intel® C621
  • Memory
    12 x DIMM, Max. 768GB, DDR4 2666/2400 MHz RDIMM, LR-DIMM Memory
    * Please refer to ASUS AVL for the latest update.
    * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
  • Graphic
    Integrated Graphics Processor
    VGA port(Optional)
    - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
    Aspeed AST2500 with 64 MB VRAM
  • Multi-GPU Support
    Supports NVIDIA® 4-Way SLI™ Technology *1
    Supports AMD 4-Way CrossFireX Technology *1
  • Expansion Slots
    3 x PCIe 3.0 x16 (x16 mode)
    2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
    2 x PCIe 3.0 x16 (x8 mode)
  • Storage
    Intel® C621 Chipset :
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 5, 10
    ASMedia® SATA 6Gb/s controller :
    2 x SATA 6Gb/s port(s),
    4 x U.2 connector,
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
  • LAN
    Intel® I210-AT, 2 x Gigabit LAN Controller(s)
  • Audio
    Realtek® S1220A 7.1-Channel High Definition Audio CODEC *2
    - Power pre-regulator reduces power input noise to ensure consistent performance
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Front panel audio connector (AAFP)
    - Supports up to 32-Bit/192kHz playback
    Audio Feature :
    - DTS Connect
    - DTS Headphone:X
    - Optical S/PDIF out port(s) at back panel
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  • USB Ports
    ASMedia® USB 3.1 Gen 2 controller :
    2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)
    Intel® C621 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
    Intel® C621 Chipset :
    4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
  • Workstation Feature
    ProCool Power Connector
    USB BIOS Flashback
    ASUS PIKE SAS upgrade kit*3
  • Special Features
    Gamer's Guardian:
    - DIGI+ VRM
    - SafeSlot
    ASUS Digital Power Design :
    - Industry leading Digital 7 + 1 Phase CPU Power Design
    - Industry leading Digital 2 Phase DRAM Power Design
    ASUS Exclusive Features :
    - Front Panel USB 3.0 Support
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-DIMM
    M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    2 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 *4
    4 x USB 3.1 Gen 1
    4 x USB 2.0
    1 x Optical S/PDIF out
    1 x USB BIOS Flashback Button(s)
    1 x 8-channel Audio I/O
  • Internal I/O Ports
    2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3
    1 x TPM header
    1 x COM port(s) connector(s)
    10 x SATA 6Gb/s connector(s)
    1 x VROC_HW_Key
    2 x CPU Fan connector(s) (2 x 4 -pin)
    7 x Chassis Fan connector(s) *5
    2 x 8-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x VGA connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x AUX panel header(s)
    1 x SMBus header(s)
    1 x 6-pin EATX 12V_3 Power connector
    1 x System panel connector
    4 x U.2 Connector (support U.2 NVMe device)
  • Form Factor
    EEB Form Factor
    12 inch x 13 inch ( 305 cm x 330 cm )
  • Note
    * Dual Intel® Socket P/LGA 3647 (Square)
    *1 Actual number of multi-graphic support differes per Vendors' graphic cards. Please check with vendor beforehand.
    *2 Due to limitation in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10
    *3 Please check AVL list for supported add on card
    *4 1 x Type A, 1 x Type C
    *5 5 x Front, 2 x Rear
