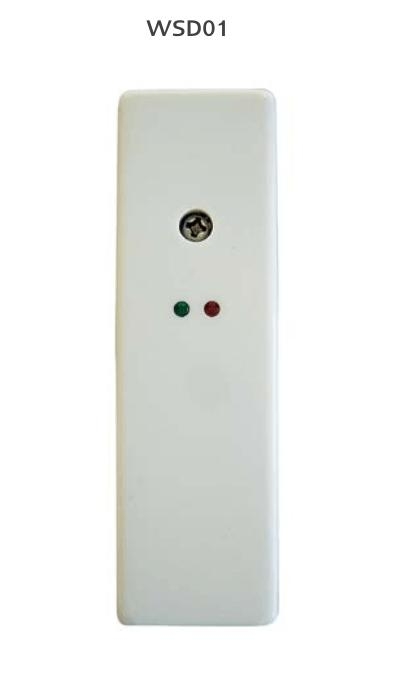

SECOR GUARDOFF VIBRATION SHOCK SENSOR SENSITIVITY ADJUSTABLE 1YR WSD01
SKU
434129
Brand
MPN
WSD01
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$24.00
Buy Now And Earn 24 Reward Points!
The Guardoff Shock Detector WSD Series offers the choice of piezoelectric or mass inertial transducer. It also features a wide range of sensitivity settings, making it suitable for all applications.
- Piezoelectric transducer
- Wide range of sensitivity settings
- Pulse counting selection
- Dual LED indicators for power and alarm
- Built-in tamper protection
- Option of non-latching or latching settings
| Power | 9-16VDC |
| Current | 15 - 18mA |
| Operating temp | -10 to +55℃ |
| Relay rating | 150mA 24V; 10 Ohm in series |
| LED indication | Red=Alarm; Green=Power |
| Pulse counting | One or two |
| Dimension | 87 × 26 × 21mm |
SECOR GUARDOFF VIBRATION SHOCK SENSOR SENSITIVITY ADJUSTABLE 1YR
