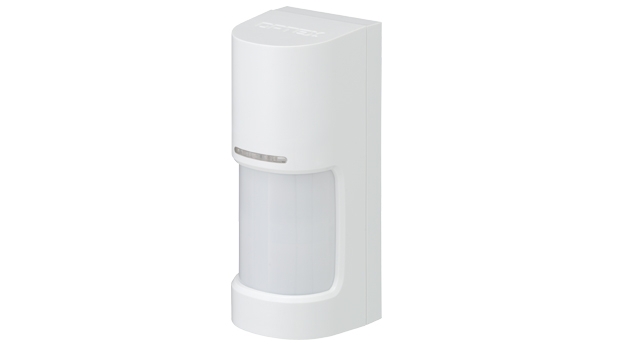

OPTEX S111303 WXI-AM PIR 12M 180DEG PET ANTI-MASK OUTDOOR-2YRS
WXI-AM Active IR anti-masking
The OPTEX WXI series is a family of external sensors built upon our years of proven experience. The series utilizes both analog and digital technologies to detect approaching intruders before they gain access into your protected area. With its comprehensive 180° field of view and capabilities to tailor its setting to meet the environment around your premise, the WXI series will provide an effective solution for new and existing security systems.
Features:
- ANTI MASKING
- 12m 180 degree wall-to-wall coverage
- Individual alarm outputs
- Individual sensitivity setting
- Individual detection area size
- Self-learning IR digital anti-masking function
- Sunlight canceling
- Rainwater and insect canceling
- AND logic function to reduce false alarms
- Area masking shutter
- Area masking plate
- SMDA (Super Multidimensional Analysis) logic
| Model | WXI-AM |
| Detection method | Passive infrared |
| Coverage | 180° wide |
| PIR zones | Horizontal 14 pairs, vertical 2 layers |
| PIR distance limit | 2.5 to 12m (Stepless adjustment) |
| Detectable speed | 0.3 to 2.0 m/s |
| Sensitivity | 2.0 °C at 0.6 m/s Selectable for each side individually |
| Power input | 9.5 – 18VDC |
| Current draw | 23mA max. at 12VDC |
| Alarm period | 2.0±1 sec. |
| Warm-up period | Approx. 60 sec. (LED blinks) |
| Alarm output (Right) | 28VDC 0.1A max. [Individual : Right or General], [NO or NC] are selectable |
| Alarm output (Left) | 28VDC 0.1A max. [Individual : Left or General], [NO or NC] are selectable |
| Trouble output | NC28VDC 0.1A max. |
| Tamper output | NC 28 VDC 0.1 A max. Open when either the cover, main or base unit is removed |
| LED indicator (DIP switch ON or Walk test) | Red LED : 1. Warm-up 2. Alarm 3. Masking detection |
| Operating temperature | -30°C to +60°C |
| Environment humidity | 95% max. |
| IP rating | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor) |
| Mounting height | 0.8 – 1.2m |
| Weight | 440g |
| Accessories | Mounting screw (4 x 20 mm) x 2, lock screw x 1 |
