Asus X870 Max Gaming WIFI7 (AM5) Atx Motherboard, DDR5 256GB, PCIe 5.0 X16, 3x M.2, 4x Sata, Wi-Fi 7, 2.5GbE Lan, USB4 X870 MAX Gaming WIFI7
SKU
440768
Brand
MPN
X870 MAX GAMING WIFI7
Warranty
Standard Manufacturer's Warranty
$305.00
Buy Now And Earn 305 Reward Points!

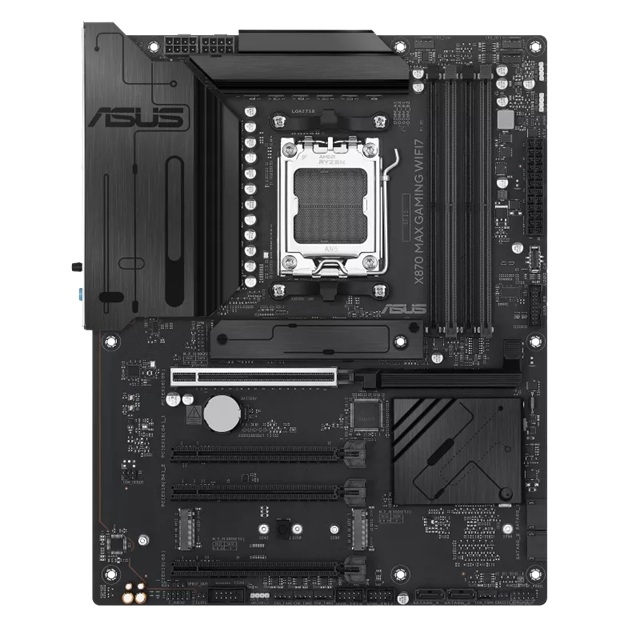

ASUS X870 MAX GAMING WIFI7 (AM5) ATX Motherboard
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Model | X870 MAX GAMING WIFI7 |
| News & Updates | Socket AM5 |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 |
| Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors | ECC and Non-ECC, Un-buffered DIMM* |
| Dual channel memory architecture | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| ASUS Enhanced Memory Profile (AEMP) | Graphics |
| 1 x HDMI™ port** | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) | AMD Ryzen™ 8000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | AMD X870 Chipset |
| 2 x PCIe 4.0 x16 slots (support x1 mode) | 1 x PCIe 3.0 x16 slot (supports x1 mode)*** |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | AMD Ryzen™ 8000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** |
| AMD X870 Chipset | M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| 4 x SATA 6Gb/s ports | RAID Support |
| AMD RAIDXpert2 Technology* | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| Ryzen™ 8000 Series Processors: RAID 0/1 | Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard | Wireless & Bluetooth |
| Wi-Fi 7* | 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** | Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth® v5.4*** | USB |
| Rear USB (Total 10 ports) | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| 1 x USB 10Gbps port (1 x Type-A) | 3 x USB 5Gbps ports (3 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) | Front USB (Total 7 ports) |
| 1 x USB 20Gbps connector (supports USB Type-C®) | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | Audio |
| Realtek 7.1 Surround Sound High Definition Audio CODEC* | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback | Audio Features |
| - Audio Shielding | - Premium audio capacitors |
| - Dedicated audio PCB layers | BIOS |
| 256 Mb Flash ROM, UEFI AMI BIOS | Manageability |
| WOL by PME, PXE | Operating System |
| Windows 11 | Form Factor |
| ATX Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ASUS X870 MAX GAMING WIFI7 (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0 x16, 3x M.2, 4x SATA, Wi-Fi 7, 2.5GbE LAN, USB4
