Specification

Phone Features . Up to 4 simultaneous calls . Up to 5 handsets, up to 5 VoIP accounts . Handset select for receiving  call . Handset and Number select for making call . Paging, intercom, auto answer . Call hold, call transfer, 3-way conferencing . Switching between calls . Call waiting, mute, DND . Caller ID display, redial . Anonymous call, anonymous call rejection . Call forward (always/busy/no answer) . Speed dial, voicemail, silence . Message Waiting Indication (MWI) . Local phonebook for up to 500 entries (store in the base) . Remote phonebook/LDAP . Phonebook search/import/export . Call history utgoing/missed/accepted) . Direct IP call without SIP proxy . Reset to factory, reboot . Keypad lock, emergency call . Dial Plan, music on hold . Broadsoft directory, BroadSoft Call Log . Broadworks feature key synchronization 　 . Shared Call Appearance (SCA) 　 Personalization . 9 ringer melodies . Screen saver . Multi-language support Management . Auto-provision via FTP/TFTP/HTTP/HTTPS . Auto-provision with PnP . Handset upgrade: OTA (Over-The-Air) . Configuration:browser/phone/auto-provision . Trace package and system log export   Voice and Codecs Features . Full-duplex speakerphone . Receiver volume control: 5 steps . Ringer volume control: 5 steps+off . Multiple advisory tones . Acoustic warning for low battery status . DTMF . Wideband codec: G.722 . Narrowband codec: G.711µ/A, G.723, G.726, G.729, iLBC . VAD, CNG, AEC, PLC, AJB . Support VQ-RTCPXR (RFC6035) Network Features . SIP v1 (RFC2543), v2 (RFC3261) . SNTP/NTP . VLAN (802.1Q and 802.1P) . 802.1x, LLDP, PPPoE . STUN Client (NAT Traversal) . UDP, TCP . IP assignment: static/DHCP . Support outbound proxy server backup Security . Open VPN . Transport Layer Security (TLS) . HTTPS (server/client) . SRTP (RFC3711) . Digest authentication using MD5 . Secure configuration file via AES encryption . Support SHA256/SHA512/SHA384 . Admin/Var/User 3-level configuration mode Connectors . CAT-iq2.0 . 1 x RJ45 10/100M Ethernet port . Power over Ethernet (IEEE 802.3af) . Headset jack (3.5 mm)   Physical Features . Indoor Range: 20m~50m (The ideal distance is 50m) . Outdoor Range: 300m (In ideal conditions) . Standby Time: 400h (In ideal conditions) . Talk Time: 30h . 2 4’’ 240x320 pixels color display . Desktop or wall mountable . LCD backlit, key backlit . Energy-saving ECO mode/ECO Mode+ . 12 key numerical keypad, 5 navigation keys 2 softkeys, 6 function keys, 6 shortcut keys . 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call . Charger: DC 5V/600mA Output . Phone size: 175mm x 53mm x 20.3mm . Base station size: 153.5mm x 108.5mm x 45mm . Operating humidity: 10 ~ 95% . Operating temp: -10 ~ +50°C Package Features 　 　 . 1 x W56H Handset, 1 x Base for W52P/W56P, 1 x Belt Clip . 1 x Rechargeable Lithium Battery, . 1 x USB Charger Cradle, 2 x Power Adapter . 1 x Ethernet Cable, 1 x Quick Start Guide . Qty/CNT: 10pcs . Giftbox size: 205mm*196mm*95mm . Carton meas: 512mm*414mm*213mm . N.W: 8.1kg . G.W: 9.0kg 　 Special Features . Increase range with up to 6 repeaters

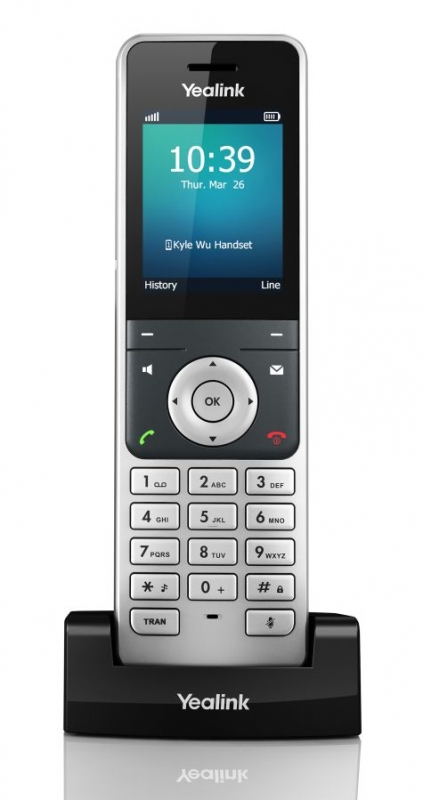

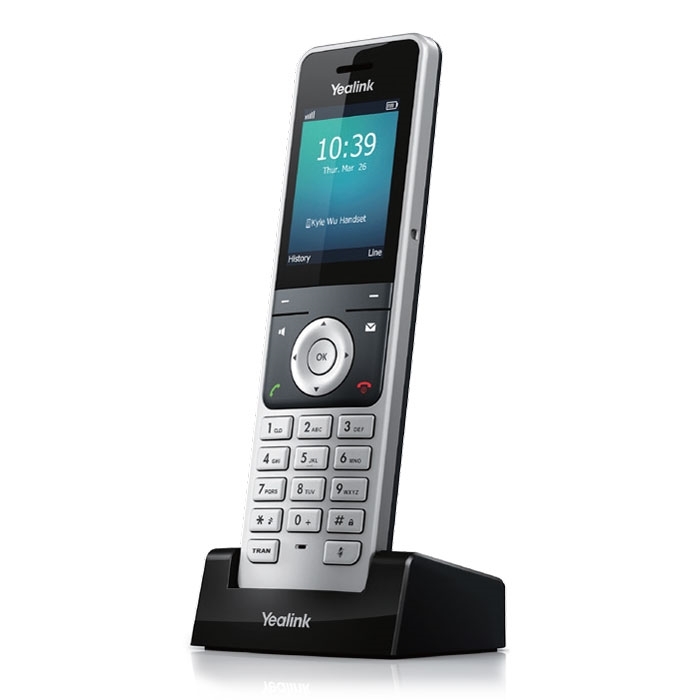

The W56P is a complete business-grade SIP Cordless Phone. This state of the art IP-DECT solution supports up to 5x W56H cordless IP-DECT Handsets per Base Station, and is designed for enterprises who are looking for a scalable SIP-based mobile communications system that provides immediate cost savings. The W56P supports the Opus high definition voice codec and the CAT-IQ2.0 standard (fully backwards compatible to the DECT GAP standard), ensuring crystal clear calls and a low data bit-rate. Combining the benefits of DECT wireless communication with the rich business features of Voice over IP telephony, users can benefit from freedom of movement, lifelike HD audio voice communications, multi-tasking convenience and professional features like intercom, transfer, call forward, 3-way conferencing and PoE support.

• High-end ID design
• Exceptional HD sound with wideband technology
• Up to 4 simultaneous voice calls
• Up to 5 DECT cordless handsets
• Up to 5 Multiple Lines
• 2.4" 240 x 320 color screen with intuitive user interface
• Up to 30 hours talk time, Up to 400 hours standby time
• Quick charging: 10 mins charge time for 2 hours talk time
• Support USB charging
• Headset connection via 3.5 mm jack
• Charger wall mountable
• New belt clip with better user experience
