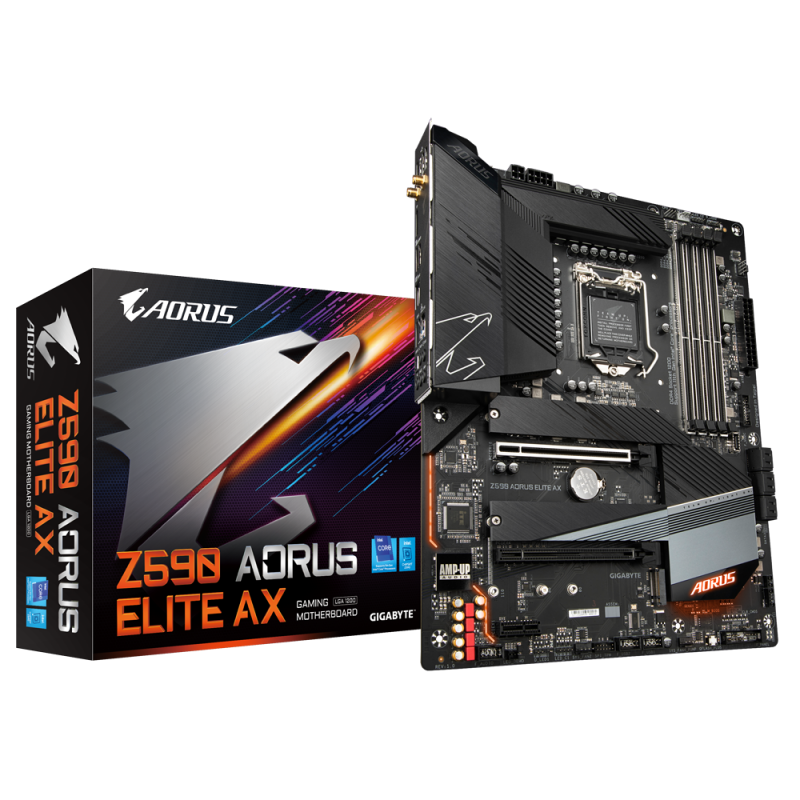

Gigabyte Z590 AORUS ELITE AX Intel ATX Motherboard, 4x DDR4 ~128GB, 2x PCI-e x16, 1x PCI-e x1, 3x M.2, 6x SATA, RAID 0/1/5/10, 1x USB-C, 5x USB 3.2 (GA-Z590-AORUS-ELITE-AX)
No Longer Available
Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support
Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN
STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel®
Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel®
Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors /
Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5
family.
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z590 Express Chipset
Memory
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4
5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/
4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /
3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 /
2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of
system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU
