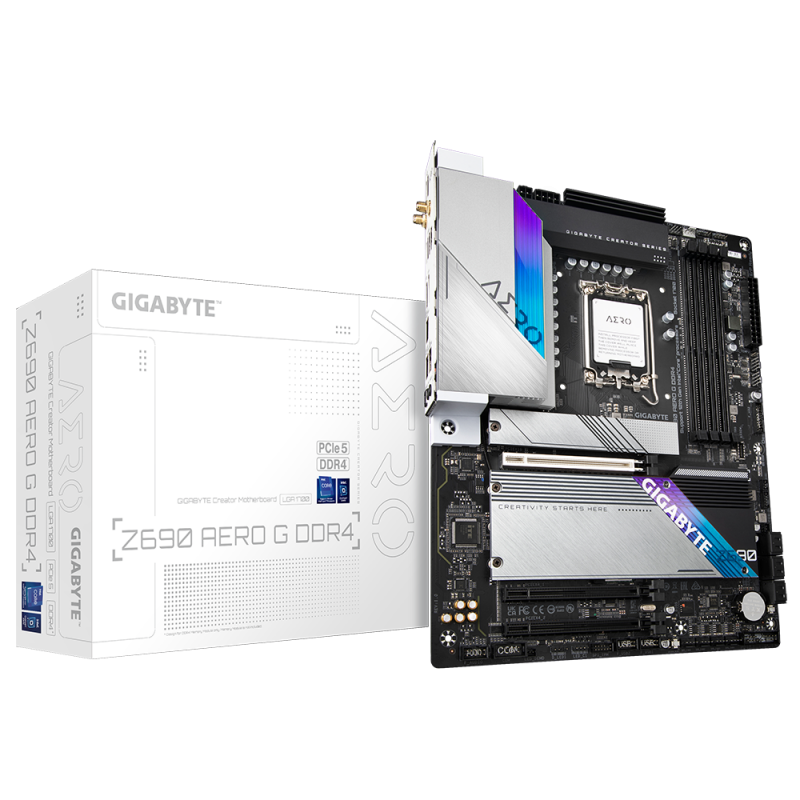

Gigabyte Z690 AERO G DDR4 Intel LGA 1700 ATX Motherboard, 4x DDR4 ~128GB, 3x PCI-E x16, 4x M.2, 6x SATA3, RAID 0/1/5/10, 2x USB-C, 6x USB 3.2
No Longer Available
Gigabyte Z690 AERO G DDR4 Intel ATX Motherboard, 4x DDR4 ~128GB, 3x PCI-E x16,
4x M.2, 6x SATA3, RAID 0/1/5/10, 2x USB-C, 6x USB 3.2, 2x USB 2.0
Intel® Z690 Creator Motherboard with unique VisionLINK I/O design, WIFI6
802.11ax and Intel® 2.5GbE LAN, PCIe 5.0 x16 slot, 4 x NVMe PCIe 4.0 x4 M.2
Connectors, USB 3.2 Gen 2x2 Type-C
• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
• Go further without more cables by VisionLINK I/O design
• Brings a speed network experience with Intel® 2.5GbE LAN
• WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
• No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
• 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
• Advanced thermal architecture design for the better thermal dissipation
• Smart Fan 6 features hybrid fan headers and numerous temperature sensors for
fan mode configuration
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
CPU
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel®
Core™ i7 processors/Intel® Core™ i5 processors
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z690 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4
5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/
4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /
3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of
system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modu
